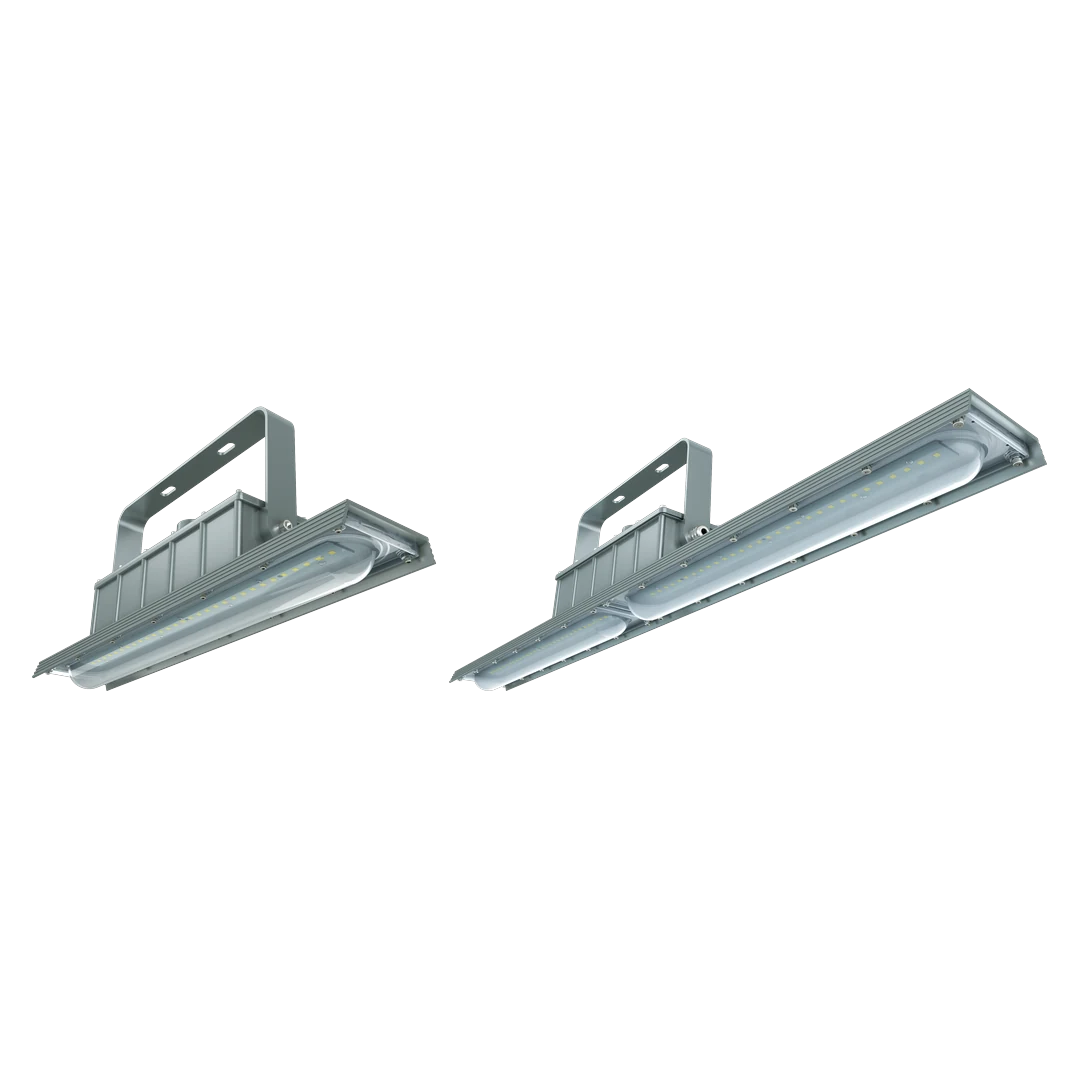

Carden CL HZ H explosion-proof linear LED fixture in two formats

Your configuration

Updates with your selection in “Configure & add to quote”

Power: 60 W
CCT: 2700 K
Beam angle: 120°
Diameter: 20.8 m
Illuminance: 80 lux

Process plant, linear luminaireØ and illuminance calculated at 6 m

Hazardous locations

CL HZ H

Name: CL HZ H
Brand: Carden Lighting
SKU: CL-HZH2-20W-30-ND

In stock

Certified linear lighting for Division 2 classified areas

Efficacy140 lm/W

Flux2,800 lm (20 W) · 5,600 lm (40 W)…

CCT3000 – 6500 K

CRIRa 70

Explosion-proof linear LED fixture for Division 2 / Zone 2 classified areas: petrochemical, water treatment, docks and marine environments. Copper-free aluminum housing, 140 lm/W, operation from -40 to +60 °C and optional emergency backup. Verified North American and international certifications.

Certifications

ETLULCSACBABSDLC

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Power: 60 W
CCT: 2700 K
Beam angle: 120°
Diameter: 20.8 m
Illuminance: 80 lux

Process plant, linear luminaireØ and illuminance calculated at 6 m

Configure & add to quote

Power

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Featured benefits

(1) Verified HazLoc certification C1D2/C2D2 · (2) 140 lm/W that reduces the electrical load in critical facilities · (3) copper-free aluminum + stainless steel + 1,000 h salt spray for corrosive and marine environments · (4) 5 mounting methods with dedicated accessories · (5) hinged side-cover version that speeds up field maintenance

Specifications

Electrical specifications

Input voltage: 100–277 VAC / 200–480 VAC · 12–36 VDC (native DC input)
Frequency: 50/60 Hz
Power factor: 0.95
Dimming (driver): 0-10V (D variants)
Emergency function: Optional · 3 hours of backup (available at 30–80 W, on/off variants)
Cable entries: Top: 3/4 NPT (standard) or 1/2 NPT · sides (2): 3/4 NPT (standard) or 1/2 NPT · the hinged side-cover version accepts an optional plug or additional entry

Photometric specifications

Luminous flux: 2,800 lm (20 W) · 5,600 lm (40 W) · 8,400 lm (60 W) · 11,200 lm (80 W)
Efficacy: 140 lm/W
CCT, manufacturing range: 2700–6500 K in 100 K steps: 3000–6500 K
CRI: Ra 70
Beam angle: 2° / 120°

Physical, materials & mounting

Housing: Copper-free aluminum: high corrosion resistance and excellent heat dissipation
Hardware: Stainless steel
Versions: Regular · hinged side cover (makes maintenance easy without disassembly; same footprint, 218 mm tall / 313 mm with bracket): specify the version when ordering
Dimensions (Regular): 2 ft: 600×119×157 mm (23.62×4.70×6.18 in), 211 mm tall with bracket · 4 ft: 1200×119×157 mm (47.24×4.70×6.18 in), 211 mm tall with bracket
Weight: 2 ft: 4.00 kg (8.82 lb) · 4 ft: 5.50 kg (12.13 lb)
Mounting: Ceiling · wall · pole · pendant · chain (5 methods with dedicated accessories)
Packaging: 2 pcs/box · 2 ft: 71.0×43.0×32.0 cm, 10.25 kg gross · 4 ft: 132.0×42.0×33.0 cm, 14.50 kg gross

Protection & lifetime

IP66: (lab report certifies IP66 and IP67 per IEC 60598-1 cl. 9.2)
IK08: With glass cover · IK10 with wire guard (passed IEC 62262 test)
Salt spray: 1,000 hours
Operating temperature: -40 °C to +60 °C (-40 °F to 140 °F)
Temperature code: T3 (at full power; lower wattages reach T4–T6 per the certificate table)
Lifetime: 150,000 h · L70
Warranty: 5 years

Configurations / SKUs

SKU	Format	Wattage	Lumens	Efficacy	CCT	Dimming	Dimensions (mm)	Weight
CL-HZH2-20W-30-ND	2 ft	20 W	2,800 lm	140 lm/W	3000 K	No	600×119×157	4.00 kg
CL-HZH2-20W-30-D	2 ft	20 W	2,800 lm	140 lm/W	3000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-20W-40-ND	2 ft	20 W	2,800 lm	140 lm/W	4000 K	No	600×119×157	4.00 kg
CL-HZH2-20W-40-D	2 ft	20 W	2,800 lm	140 lm/W	4000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-20W-50-ND	2 ft	20 W	2,800 lm	140 lm/W	5000 K	No	600×119×157	4.00 kg
CL-HZH2-20W-50-D	2 ft	20 W	2,800 lm	140 lm/W	5000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-20W-65-ND	2 ft	20 W	2,800 lm	140 lm/W	6500 K	No	600×119×157	4.00 kg
CL-HZH2-20W-65-D	2 ft	20 W	2,800 lm	140 lm/W	6500 K	0-10V	600×119×157	4.00 kg
CL-HZH2-40W-30-ND	2 ft	40 W	5,600 lm	140 lm/W	3000 K	No	600×119×157	4.00 kg
CL-HZH2-40W-30-D	2 ft	40 W	5,600 lm	140 lm/W	3000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-40W-40-ND	2 ft	40 W	5,600 lm	140 lm/W	4000 K	No	600×119×157	4.00 kg
CL-HZH2-40W-40-D	2 ft	40 W	5,600 lm	140 lm/W	4000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-40W-50-ND	2 ft	40 W	5,600 lm	140 lm/W	5000 K	No	600×119×157	4.00 kg
CL-HZH2-40W-50-D	2 ft	40 W	5,600 lm	140 lm/W	5000 K	0-10V	600×119×157	4.00 kg
CL-HZH2-40W-65-ND	2 ft	40 W	5,600 lm	140 lm/W	6500 K	No	600×119×157	4.00 kg
CL-HZH2-40W-65-D	2 ft	40 W	5,600 lm	140 lm/W	6500 K	0-10V	600×119×157	4.00 kg
CL-HZH4-40W-30-ND	4 ft	40 W	5,600 lm	140 lm/W	3000 K	No	1200×119×157	5.50 kg
CL-HZH4-40W-30-D	4 ft	40 W	5,600 lm	140 lm/W	3000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-40W-40-ND	4 ft	40 W	5,600 lm	140 lm/W	4000 K	No	1200×119×157	5.50 kg
CL-HZH4-40W-40-D	4 ft	40 W	5,600 lm	140 lm/W	4000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-40W-50-ND	4 ft	40 W	5,600 lm	140 lm/W	5000 K	No	1200×119×157	5.50 kg
CL-HZH4-40W-50-D	4 ft	40 W	5,600 lm	140 lm/W	5000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-40W-65-ND	4 ft	40 W	5,600 lm	140 lm/W	6500 K	No	1200×119×157	5.50 kg
CL-HZH4-40W-65-D	4 ft	40 W	5,600 lm	140 lm/W	6500 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-60W-30-ND	4 ft	60 W	8,400 lm	140 lm/W	3000 K	No	1200×119×157	5.50 kg
CL-HZH4-60W-30-D	4 ft	60 W	8,400 lm	140 lm/W	3000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-60W-40-ND	4 ft	60 W	8,400 lm	140 lm/W	4000 K	No	1200×119×157	5.50 kg
CL-HZH4-60W-40-D	4 ft	60 W	8,400 lm	140 lm/W	4000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-60W-50-ND	4 ft	60 W	8,400 lm	140 lm/W	5000 K	No	1200×119×157	5.50 kg
CL-HZH4-60W-50-D	4 ft	60 W	8,400 lm	140 lm/W	5000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-60W-65-ND	4 ft	60 W	8,400 lm	140 lm/W	6500 K	No	1200×119×157	5.50 kg
CL-HZH4-60W-65-D	4 ft	60 W	8,400 lm	140 lm/W	6500 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-80W-30-ND	4 ft	80 W	11,200 lm	140 lm/W	3000 K	No	1200×119×157	5.50 kg
CL-HZH4-80W-30-D	4 ft	80 W	11,200 lm	140 lm/W	3000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-80W-40-ND	4 ft	80 W	11,200 lm	140 lm/W	4000 K	No	1200×119×157	5.50 kg
CL-HZH4-80W-40-D	4 ft	80 W	11,200 lm	140 lm/W	4000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-80W-50-ND	4 ft	80 W	11,200 lm	140 lm/W	5000 K	No	1200×119×157	5.50 kg
CL-HZH4-80W-50-D	4 ft	80 W	11,200 lm	140 lm/W	5000 K	0-10V	1200×119×157	5.50 kg
CL-HZH4-80W-65-ND	4 ft	80 W	11,200 lm	140 lm/W	6500 K	No	1200×119×157	5.50 kg
CL-HZH4-80W-65-D	4 ft	80 W	11,200 lm	140 lm/W	6500 K	0-10V	1200×119×157	5.50 kg

Swipe the table to see all columns →

Differentiator

Certification scopes verified document by document (not from brochures): a transparent wattage↔certification matrix to specify without risk

Ideal buyer

Petrochemical and water treatment plant engineering · industrial electrical contractors · port/offshore operations purchasing
