CL TRF 13

Name: CL TRF 13
Brand: Carden Lighting
SKU: CL-TRF13-2X2-STD

In stock

Soft, even light where the ceiling has no room to spare

Power25 – 50 W · Three selectable steps depending…

Efficacy110 – 125 lm/W

Flux3,850 – 6,200 lm depending on…

CCT3500 – 5000 K

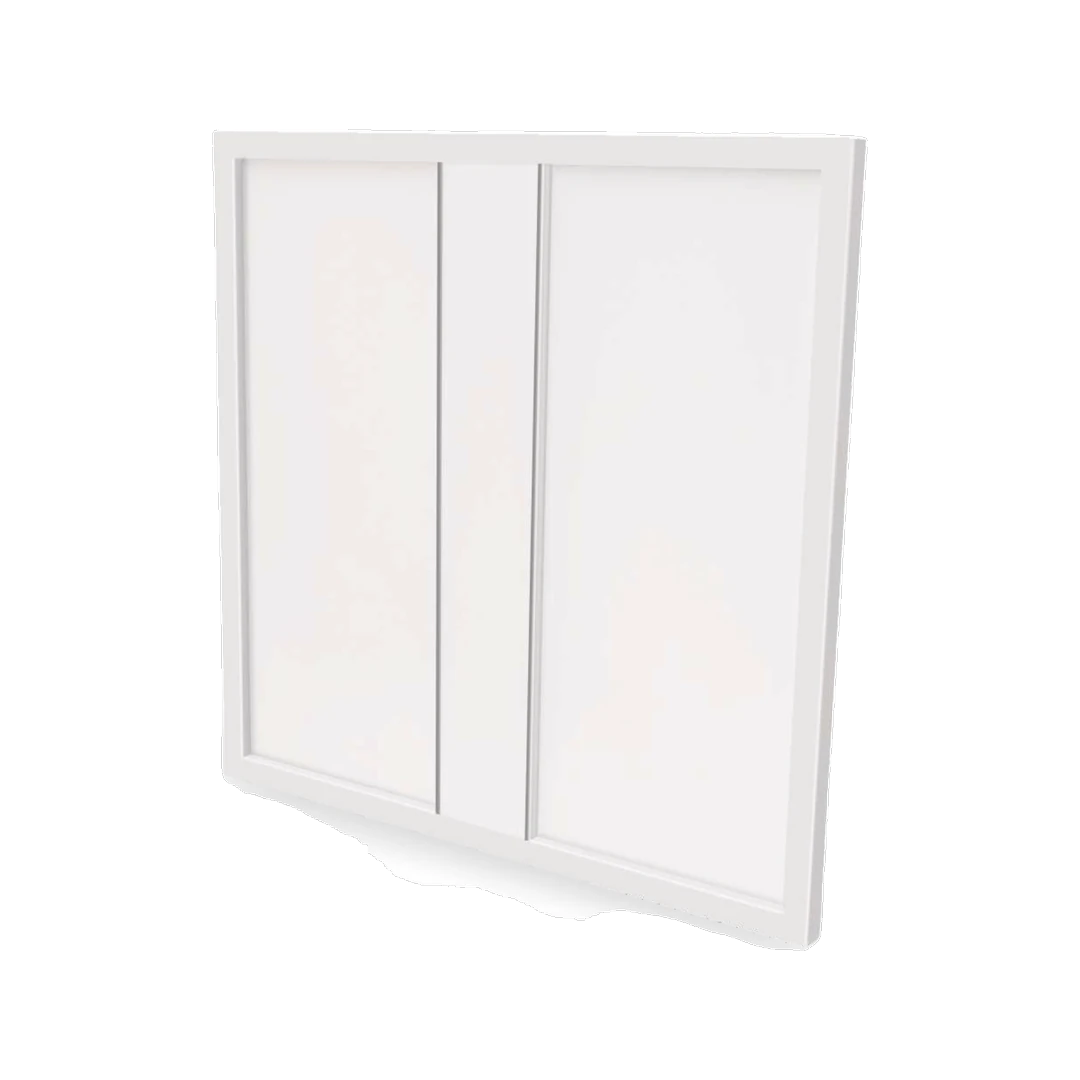

Recessed curved-front troffer with back-lit technology: light diffuses before

Certifications

DLC

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Power: 40 W
CCT: 2700 K
Beam angle: 120°
Diameter: 10.4 m
Illuminance: 212 lux

Interior, recessed panelØ and illuminance calculated at 3 m

Configure & add to quote

Power

//W

Pick the SKU; the highlighted wattage is the default.

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Open offices: soft, even lighting over desks and monitors.Classrooms and school buildings: the three temperature steps let you tune each classroom.Retail: sales floors with T-grid ceilings where the fixture is visible.Healthcare: exam rooms, corridors and general care areas.Buildings with a shallow plenum: its low profile solves remodels with little space above the ceiling.

Featured benefits

Adapts on site: three wattages and three color temperatures without replacing the fixture
Two DLC levels: Standard and Premium, depending on the incentive that applies to the project
Up to 125 lm/W at the Premium level
Low profile: fits remodels with little space above the ceiling
Curved front: the fixture looks better when off
Back-lit: diffuse light, no bright spots on monitors

Specifications

Electrical specifications

Input voltage: 120 – 277
Wattage: Three selectable steps depending on size (see table)
Dimming: 0-10
Driver: Integrated

Photometric specifications

Output: 3,850 – 6,200 lm depending on size and level
Efficacy: 110–125 lm/W
CCT: 3500–5000 K
Optics: Back-lit; light is diffused before it exits, with no visible bright spots
Distribution: Uniform and soft, designed for workspaces and classrooms

Physical, materials & mounting

Sizes: 2' × 2', 2' × 4' and 1' × 4'
Profile: Low profile: designed for buildings with little space between ceiling and slab
Shape: Floating curve: the front is not flat but a curved surface that reads as if the light were suspended in the ceiling
Construction: Compact, rigid aluminum
Mounting: Standard 2×2, 2×4 and 1×4 T-grid ceiling

Configurations / SKUs

SKU	Size	Level	Selectable wattages	Output @ 4000 K	Efficacy
CL-TRF13-2X2-STD★	2' × 2'	Standard	25–35 W	3,850 lm	110 lm/W
CL-TRF13-2X4-STD★	2' × 4'	Standard	30–50 W	5,500 lm	110 lm/W
CL-TRF13-1X4-STD	1' × 4'	Standard	25–35 W	3,850 lm	110 lm/W
CL-TRF13-2X2-PRM★	2' × 2'	Premium	25–35 W	4,300 lm	125 lm/W
CL-TRF13-2X4-PRM★	2' × 4'	Premium	30–50 W	6,200 lm	125 lm/W

Swipe the table to see all columns →
