Featured function
Select beam angle in a single luminaire.
Commercial
CL DL D 10
Premium Dual COB LED Downlight 27W · CRI>90 · UGR<16 · 4 Beam Options

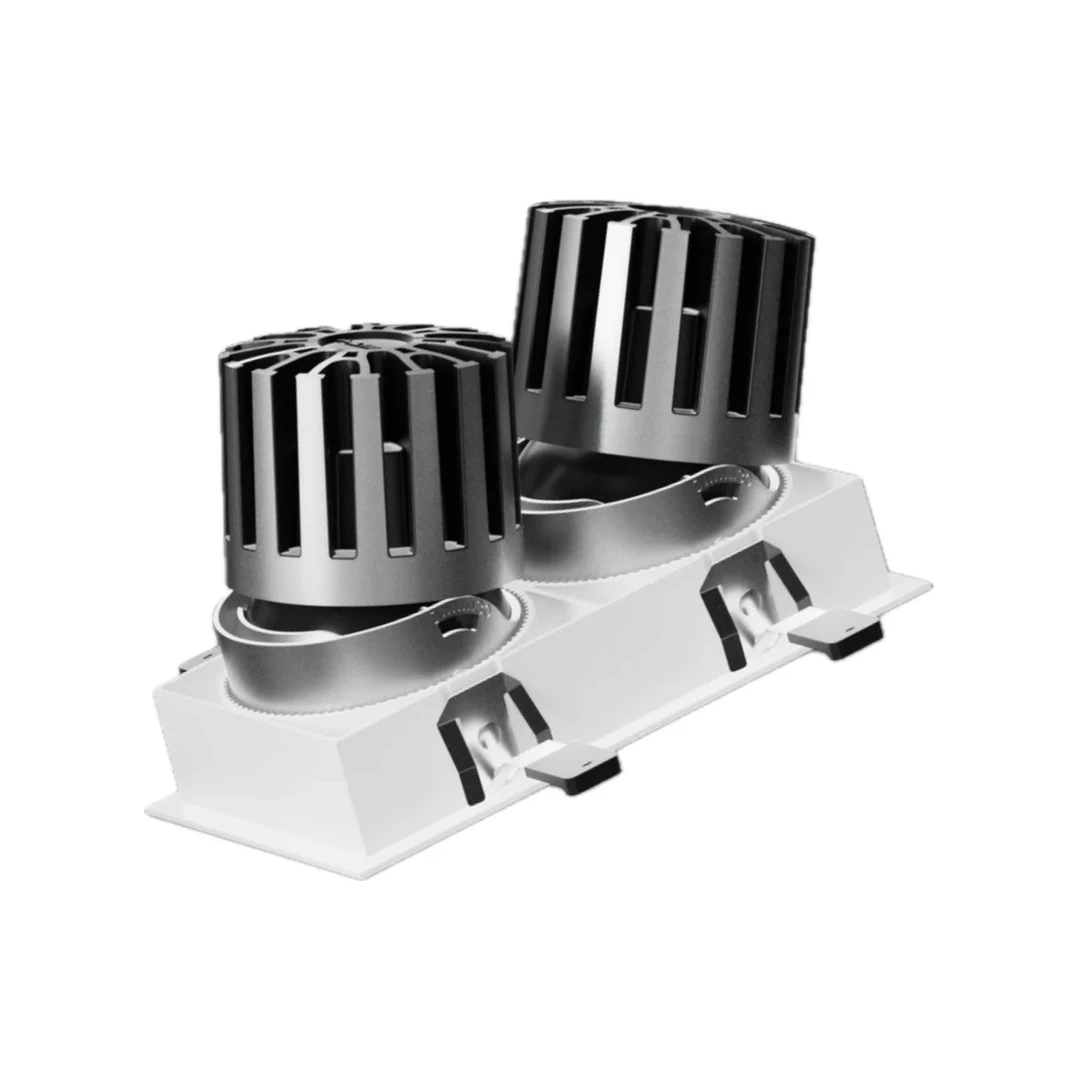

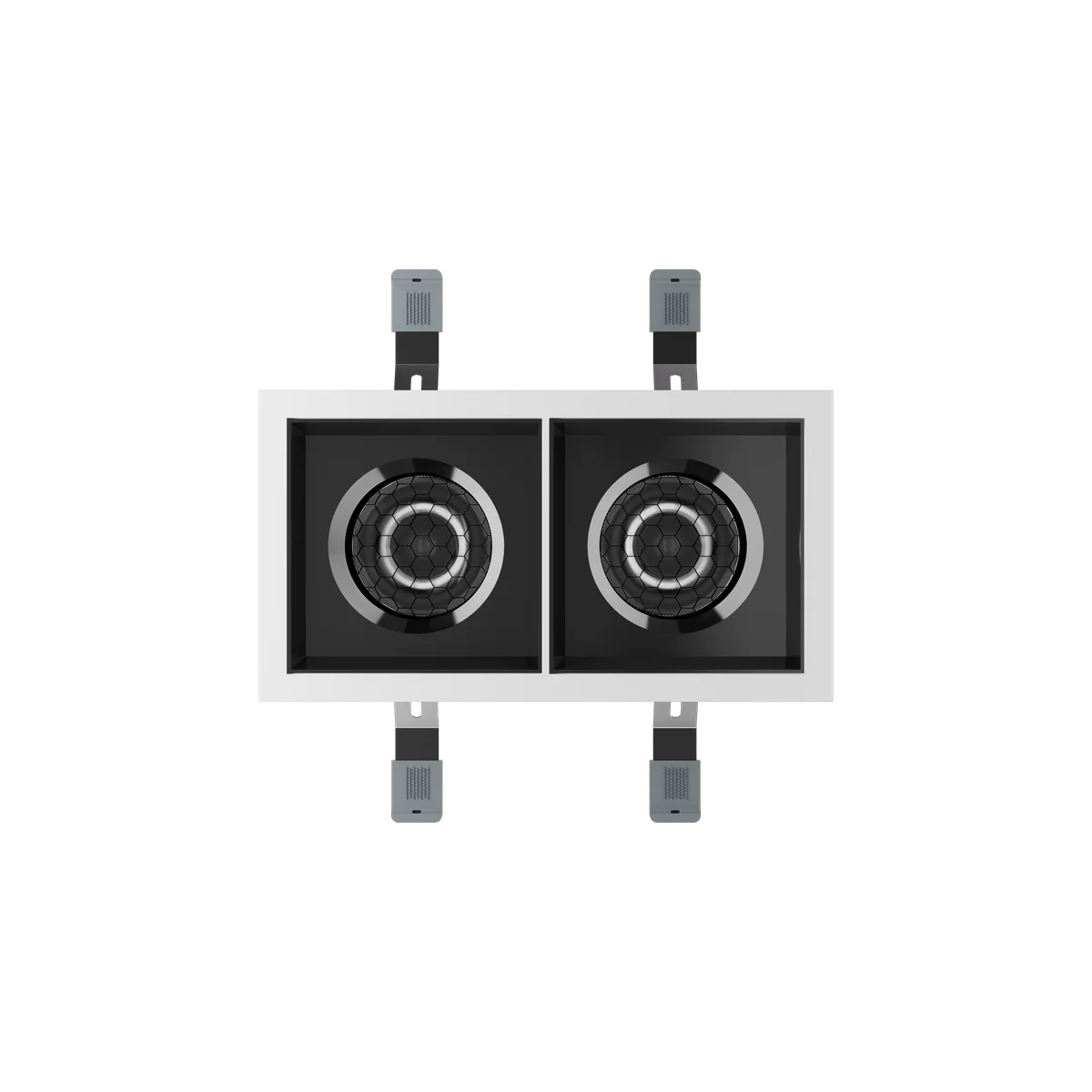

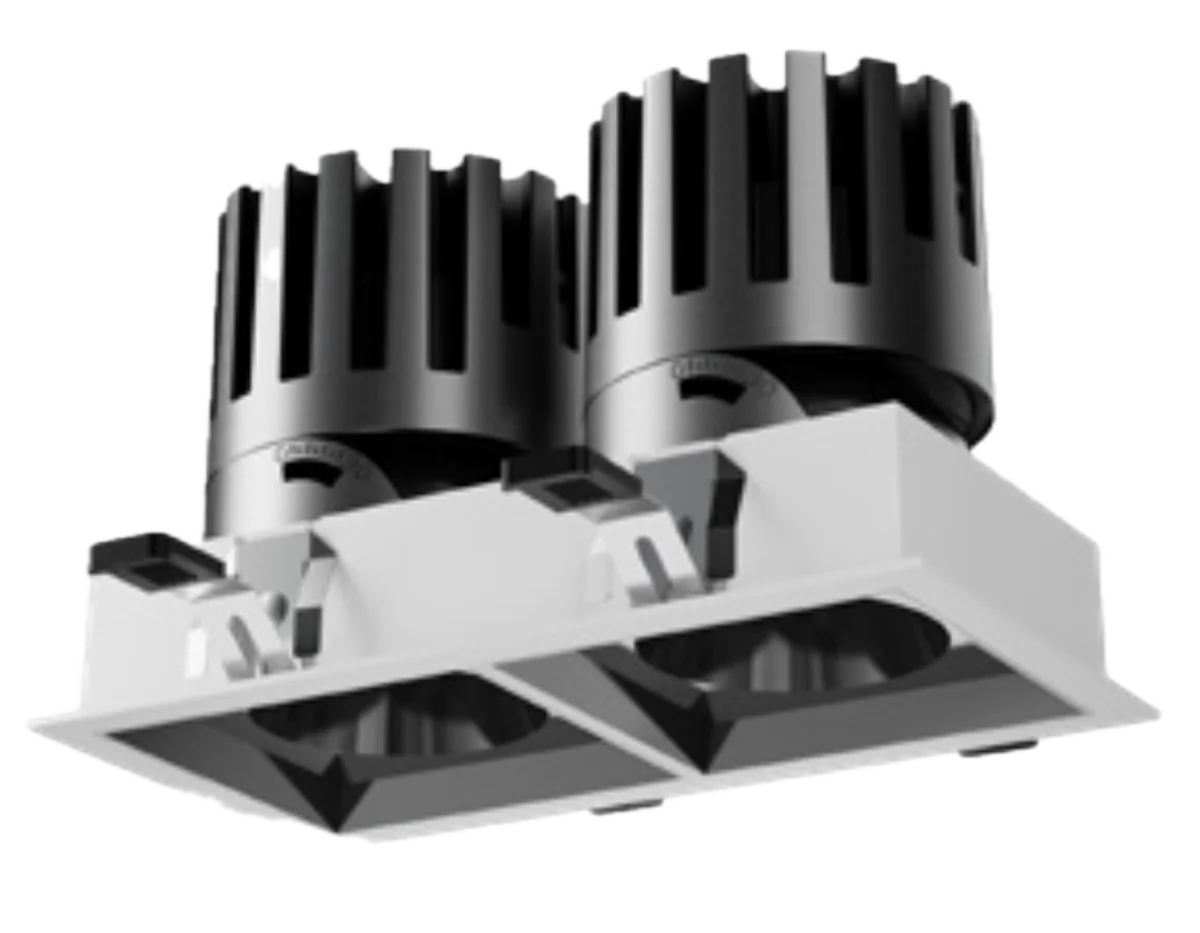

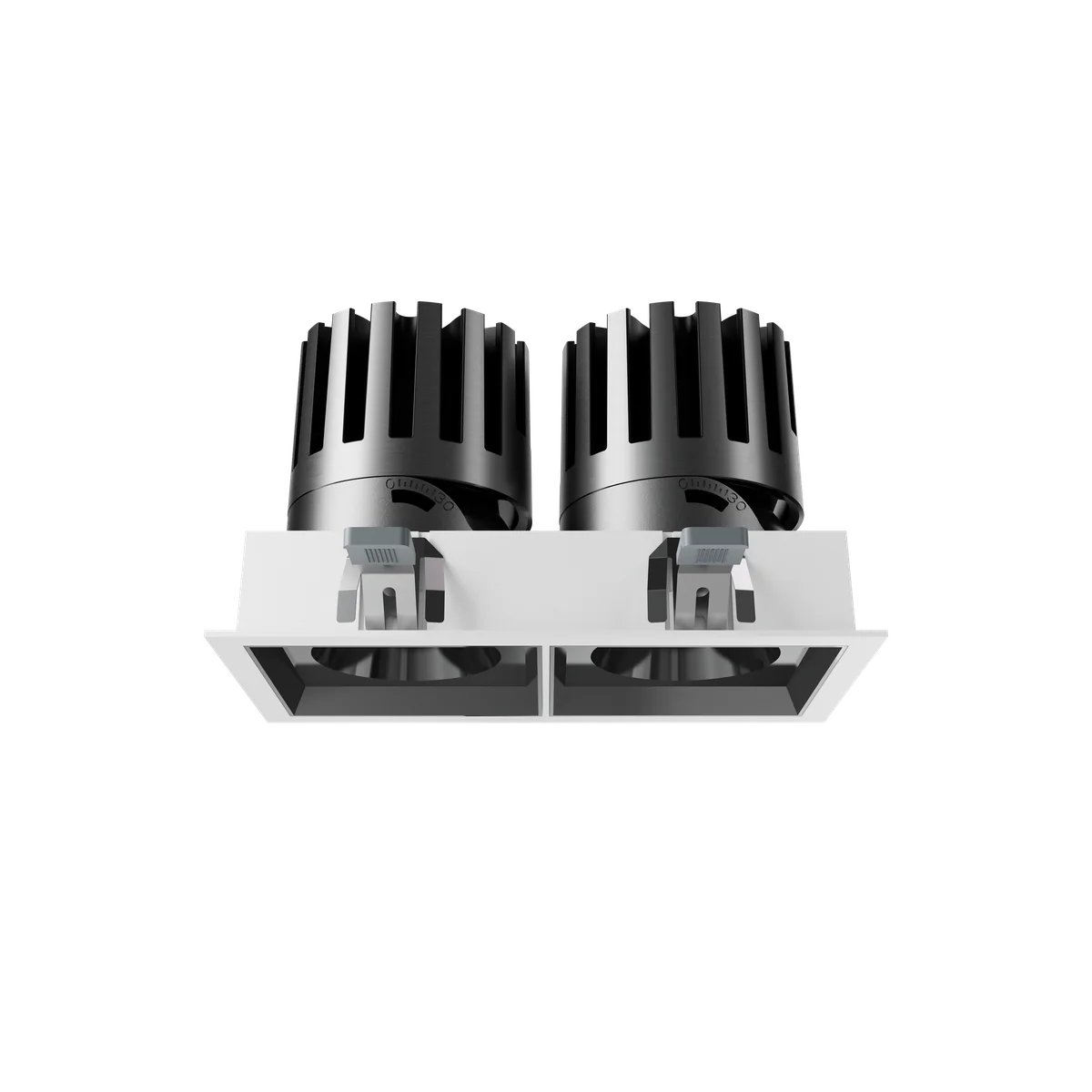

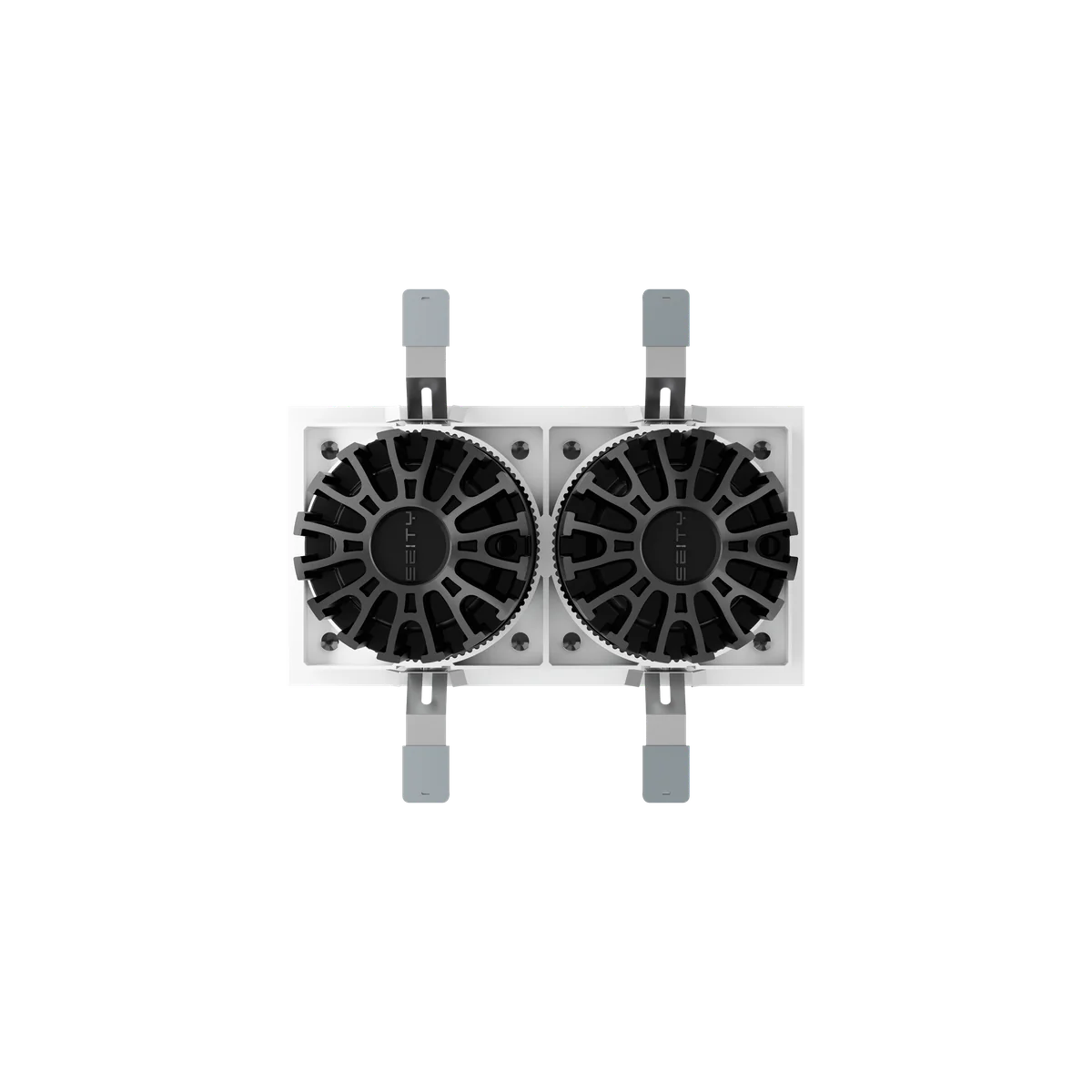

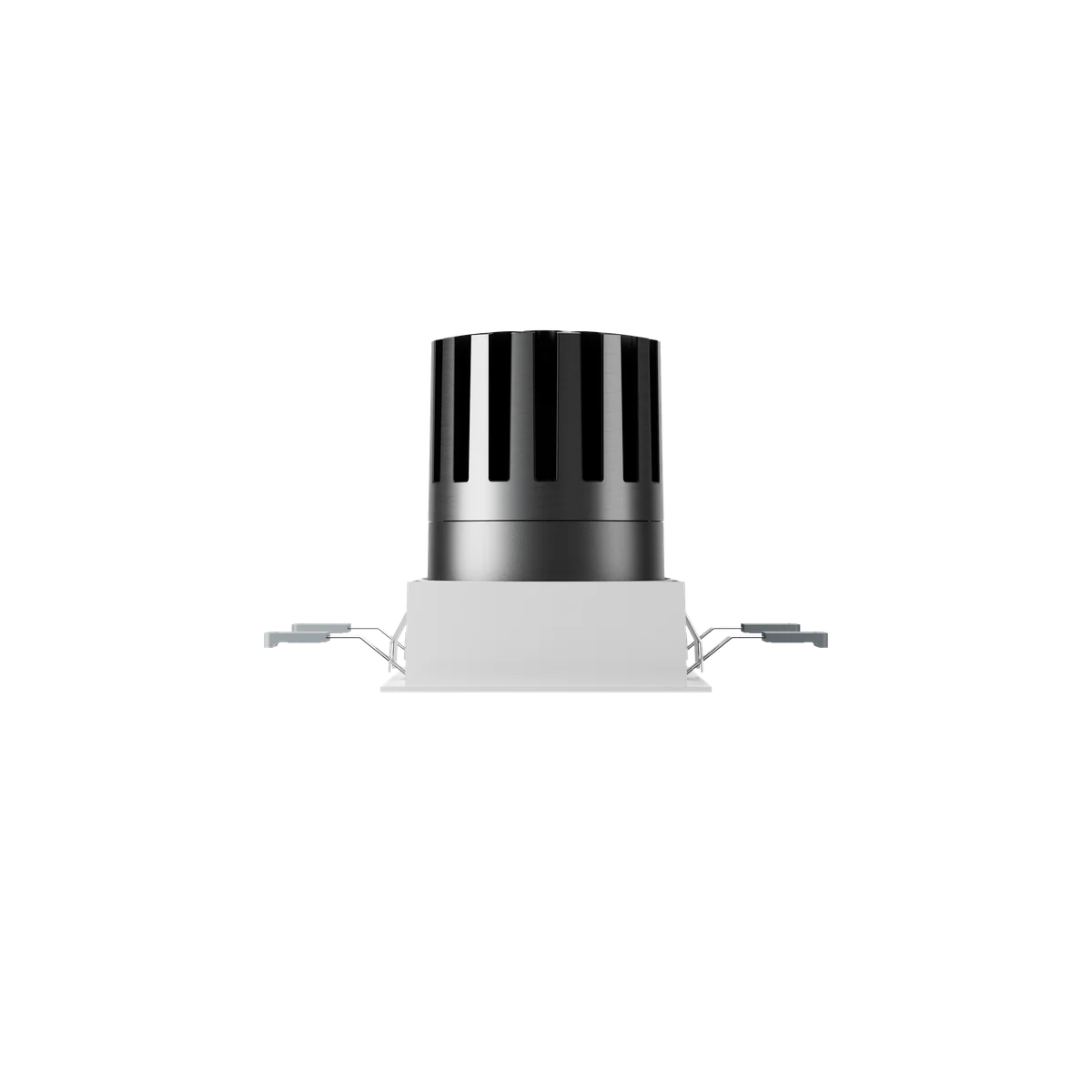

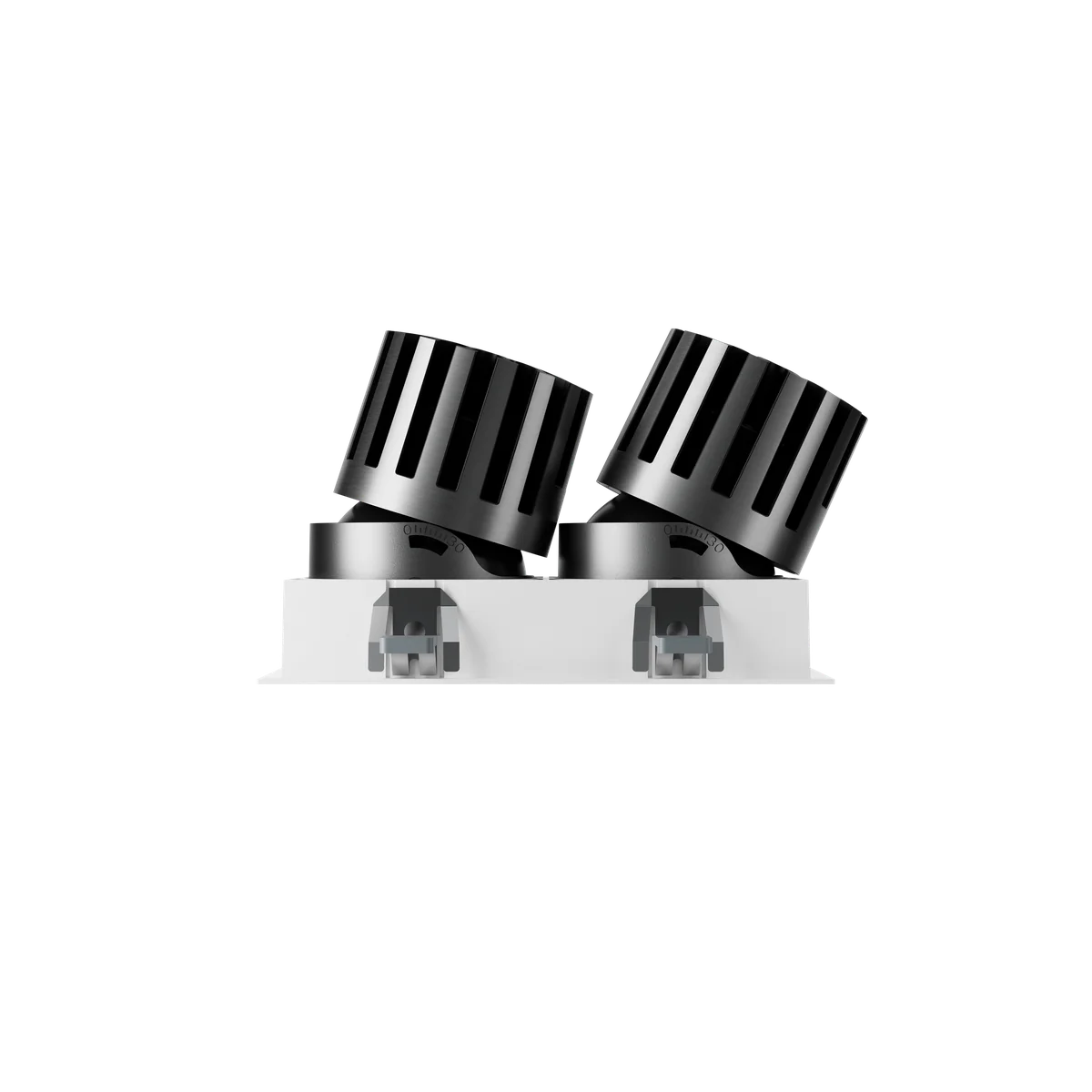

Round recessed downlight with a dual COB module using premium grade A US-origin chips. A 27.35 W system producing 2,269 lm @ 4000 K with 83 lm/W efficacy. CRI >90 + MacAdam ≤3 + UGR <16: a premium combination for high color fidelity lighting in retail, hospitality, galleries and high-end residential. 4 selectable beam angles (15° spot, 24° narrow, 36° medium, 45° wide), 3 CCTs (2700/3000/4000 K), 2 frame colors (white/black), 4 control options (on/off, 1–10 V, DALI, TRIAC). Universal 100–277 V, tool-free installation (easy-install springs), L80/B10 lifetime of 50,000 hours, 3-5 year warranty. Cutout Φ75 × 147 mm, weight 0.80 kg.
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Optic / beam
Mounting
Accessories
Other / extra requirement
Quantity
- Premium US-origin COB chips: higher quality than generic LEDs
- CRI >90 + MacAdam ≤3 + UGR <16: a unique combination for critical color rendering
- 4 selectable beam angles (15° spot to 45° wide): application versatility
- 4 control options (DALI, TRIAC, 1–10 V or on/off): compatible with any control system
- Tool-free installation (easy-install springs): less installation labor
- Twin COB head, no multiple shadows (unlike multi-LED SMD grilles)
- L80/B10 50,000 h: premium standard lifetime
- 2 frame colors (W/B): fits any interior design
Tap to add them to your configuration →
Specifications
Electrical specifications
- Input voltage
- 100–277 V (universal multi-voltage)
- Frequency
- 50/60 Hz
- Output voltage (driver)
- 25–42 V
- Output current
- 0.35 A × 2 (dual driver · one per COB)
- System power
- 27.35 W
- Power factor
- 0.9
- Dimming options
- On/off (standard, the most economical option) · 1–10 V, DALI or TRIAC dimming
- Warm-up time
- Instant full light (no warm-up time)
- Working temperature
- T-Case Lifetime 85°C
- Energy saving
- YES
Photometric specifications
- CRI / Ra
- Ra 90
- Initial MacAdam binning
- ≤ 3 (premium color consistency)
- UGR
- < 16 (commercial anti-glare)
- Available CCT (K)
- 2700–4000 K
- Default CCT
- 4000 K
- Tunable CCT
- Any CCT, set when ordering
- Beam angles
- 15° / 24° / 36° / 45°
- Average Beam Angle 50%
- 4° / 36°
- Tested lumen output
- 36–4,000 lm
- Efficacy
- 82.95 lm/W
- LED type
- High-performance COB
- Distribution
- Symmetric
- Downward LOR
- 100 % (no uplight spill)
- No multiple shadows
- Single-point COB design (multi-LED SMD creates multiple shadows)
Physical, materials & mounting
- Housing
- Aluminum (passive cooling · optimised heat sink geometry)
- Lens
- high quality lens system + PC cylinder
- Frame color (surface)
- White or black
- Body color
- Natural aluminum (encapsulated)
- Dimensions
- Cutout: Φ75 × 147 mm (2 circular Φ75 cutouts 147 mm apart, center to center) · fixture: Φ156.7 × 85 × 97.4 mm (full frame/grille)
- Weight
- 0.80 kg (per fixture)
- Mounting
- Tool-free installation with high-quality easy-install spring clips
- Packaging
- Inner carton 1 pc · Master carton 24 pcs
Protection & lifetime
- IP rating
- IP20
- Operating temperature
- T-case lifetime at 85 °C (safe operation up to this temperature)
- Lifetime
- 50,000 h · L80
- Warranty
- 3 years
Configurations / SKUs
| SKU | Total power | LEDs | Lumens | Efficacy | CCT | Beam | Frame color | Dimming |
|---|---|---|---|---|---|---|---|---|
| CL-DLD10-2x5W-40-36-W-Triac | 10 W | 2× COB premium 5W | 830 lm | 83 lm/W | 4000 K | 36° | White | Triac |
| CL-DLD10-2x7W-40-36-W-Triac | 14 W | 2× COB premium 7W | 1,160 lm | 83 lm/W | 4000 K | 36° | White | Triac |
| CL-DLD10-2x9W-40-36-W-Triac★ | 18 W | 2× COB premium 9W | 1,490 lm | 83 lm/W | 4000 K | 36° | White | Triac |
| CL-DLD10-2x12W-40-36-W-Triac | 24 W | 2× COB premium 12W | 1,990 lm | 83 lm/W | 4000 K | 36° | White | Triac |
| CL-DLD10-2x15W-40-36-W-Triac★ | 27.35 W | 2× COB premium 15W | 2,269 lm | 83 lm/W | 4000 K | 36° | White | Triac |
| CL-DLD10-2x15W-40-36-B-Triac | 27.35 W | 2× COB premium 15W | 2,269 lm | 83 lm/W | 4000 K | 36° | Black | Triac |
| CL-DLD10-2x15W-30-36-W-DALI | 27.35 W | 2× COB premium 15W | 2,200 lm | 80 lm/W | 3000 K | 36° | White | DALI |
| CL-DLD10-2x15W-27-15-W-Triac | 27.35 W | 2× COB premium 15W | 2,100 lm | 77 lm/W | 2700 K | 15° | White | Triac |
| CL-DLD10-2x15W-40-24-W-110V | 27.35 W | 2× COB premium 15W | 2,269 lm | 83 lm/W | 4000 K | 24° | White | 1–10 V |
| CL-DLD10-2x15W-40-45-B-noDim | 27.35 W | 2× COB premium 15W | 2,200 lm | 80 lm/W | 4000 K | 45° | Black | On/off |
Swipe the table to see all columns →
Ordering code
CL-DLD10-2x{wattage}W-{cct}-{beam}-{color}-{dimming}Measured photometry
| IES | lm | W | lm/W | Imax (cd) | Beam |
|---|---|---|---|---|---|
| CL-DL-D1036D30W4000 K | 2,291 | 27 | 83 | 6,219 | 36° |
| v2.0 | — | — | — | — | — |
Differentiator
The only dual-COB downlight in the Carden catalog with premium US-origin chips + CRI >90 + MacAdam ≤3 + UGR <16, a premium spec combination rarely found in generic imported downlights. Ideal for projects where color fidelity and visual comfort are critical (museums, jewelry stores, 5-star hospitality, premium healthcare).
Ideal buyer
Premium interior architects · hospitality designers (4-5 star hotel chains) · art galleries · high-end jewelry stores and boutiques · premium residential builders · retail lighting specialists
