CL DL 14

Name: CL DL 14
Brand: Carden Lighting
SKU: CL-DL14-40W-3CCT

In stock

You see the light, not the source

Power14 – 80 W · Three selectable steps per engine…

Efficacy85 lm/W

Flux1,200 – 6,800 lm depending on…

CCT3000 – 4000 K

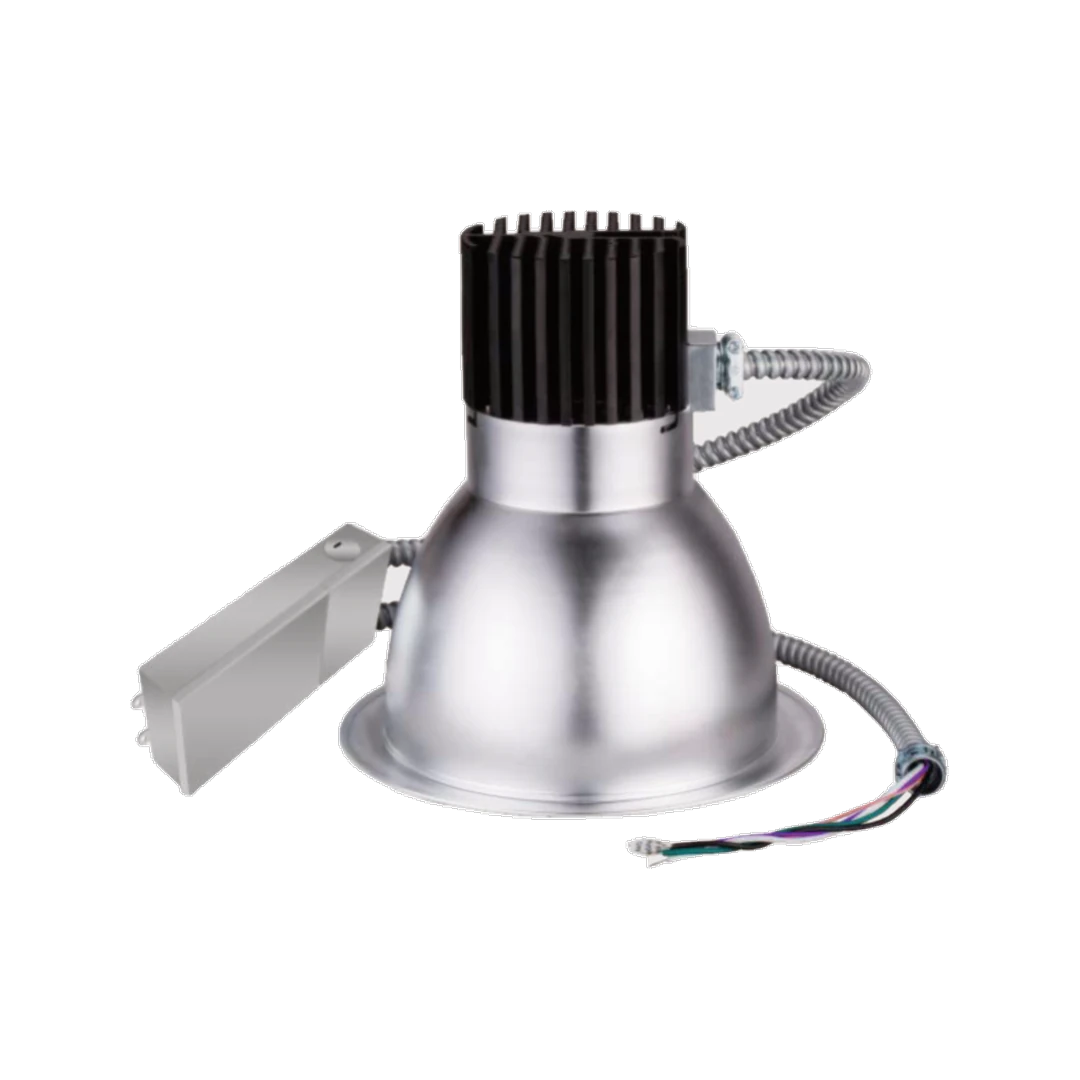

Deep regressed recessed downlight: the LED sits back behind a spun

Certifications

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Power: 27 W
CCT: 2700 K
Beam angle: 60°
Diameter: 3.5 m
Illuminance: 535 lux

Commercial interiorØ and illuminance calculated at 3 m

Configure & add to quote

Power

//W

Pick the SKU; the highlighted wattage is the default.

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Shopping centers: main corridors and double-height spaces, where the 80 W reaches the floor.Airports and terminals: circulation areas with high ceilings.Hotel lobbies: glare-free accent light along the walkway.Hospitals: corridors and waiting rooms; the 40 W engine is IC rated for insulated ceilings.Image-driven retail: the spun reflector gives a clean beam on merchandise.Remodeling an existing housing: replaces incandescent, compact fluorescent and metal halide in an open frame.

Featured benefits

Deep regressed: the source stays hidden from the walkway
Up to 80 W and 6,800 lumens; reaches double-height spaces
One engine fits four diameters, with twist-lock coupling
IC engine available for insulated ceilings
The aluminum ring works as a heat sink: less heat, longer life
True retrofit: fits an existing open-frame commercial housing
UL, ENERGY STAR and damp rated

Specifications

Electrical specifications

Input voltage: 100 – 277 V CA
Wattage: Three selectable steps per engine (see table)
Driver: Integrated into the engine

Photometric specifications

Output: 1,200 – 6,800 lm depending on engine and step
Efficacy: 85 lm/W
CCT: 3000–4000 K
Optics: Spun aluminum reflector with a haze finish and white trim, designed not to cast an edge shadow
Distribution: Regressed: the source sits recessed, out of the direct line of sight

Physical, materials & mounting

Diameters: 4" · 6" · 8" · 10"
Regressed depth: 1.97" (4") · 2.36" and 3.94" depending on version in 6", 8" and 10"
Coupling: Twist-lock: the same engine fits every trim in the series
Thermal: The engine mounts directly on the aluminum ring, which acts as a heat sink
Fastening: Spring clips, in 2-piece sets per diameter
New construction frame: Available in all four diameters
Retrofit: Fits an installed open-frame commercial housing, without redoing the outlet

Protection & lifetime

Location: Damp Rated
Thermal rating: IC on the 40 W engine · non-IC on the 27 W and 80 W engines

Configurations / SKUs

SKU	Selectable wattages	Output	CCT	Thermal	Trim diameters
CL-DL14-27W-3CCT	14–27 W	1,200 / 1,600 / 2,025 lm	3000–4000 K	NON-IC	4" only
CL-DL14-40W-3CCT★	18–40 W	1,500 / 2,300 / 3,500 lm	3000–4000 K	IC	6" · 8" · 10"
CL-DL14-80W-35K★	50–80 W	4,200 / 5,500 / 6,800 lm	3500 K	NON-IC	6" · 8" · 10"
CL-DL14-80W-40K★	50–80 W	4,200 / 5,500 / 6,800 lm	4000 K	NON-IC	6" · 8" · 10"
