Commercial
CL AR 15
In stockThe ceiling gets light too

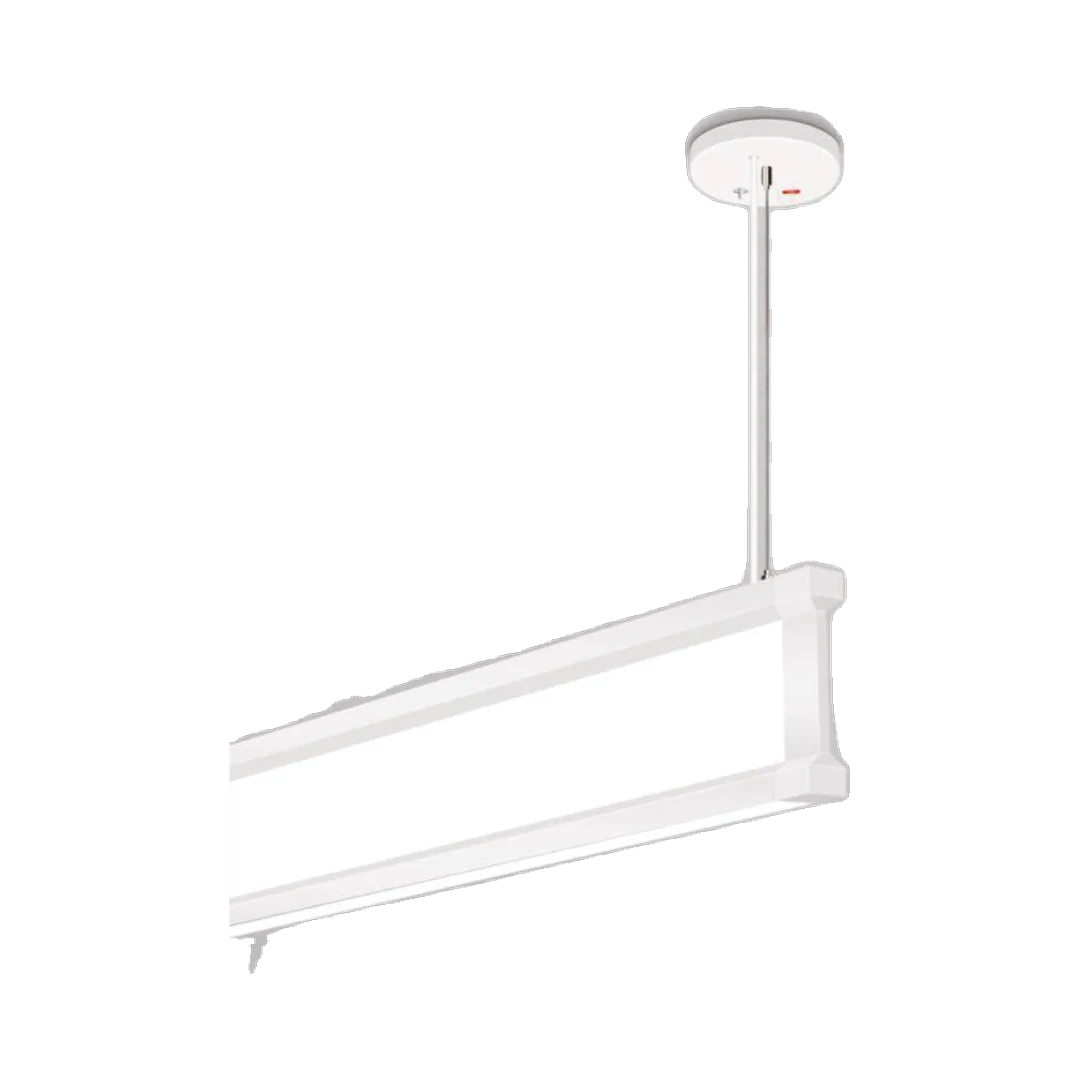

Architectural linear with semi-transparent vertical optics that sends light
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
- Power
- 60 W
- CCT
- 2700 K
- Beam angle
- 90°
- Diameter
- 6.0 m
- Illuminance
- 543 lux
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- Direct and indirect distribution: the ceiling does not stay dark
- Up to 1,100 lm per foot
- Two optics on the same body: diffuser or louver
- Color adjustable with a visible switch, without opening the fixture
- Continuous runs up to 40 feet per feed
- White or black, in three lengths
- 5-year warranty, UL and damp rated
- Assembles on site without tools
Specifications
Electrical specifications
- Input voltage
- 120 – 277
- Wattage
- 10–80 W
- Dimming
- 0-10 V, down to 10 % standard · down to 1 % optional
- Driver
- Integrated as standard. An external driver variant also exists
- Continuous run
- Up to 40 feet per feed
- CCT adjustment
- DIP switch visible on the fixture; changed without opening the fixture
Photometric specifications
- Output
- 3,400 – 8,800 lm depending on length and optics
- Output per foot
- Up to 1,100 lm/ft (diffuser) · up to 850 lm/ft (louver)
- Efficacy
- 110 lm/W
- CCT
- 3000–4000 K
- Optics
- Ultra-thin semi-transparent vertical, with diffuser or louver
- Distribution
- Direct and indirect, with a controlled split between the surface below and the horizontal space
Physical, materials & mounting
- Lengths
- 4 ft · 6 ft · 8 ft
- Silhouette
- Distinctive angled profile where the frame meets the optic
- Finish
- White or black
- Mounting
- T-grid or solid ceiling
- Connection
- Assembly design made to be put together on site, without tools
- Continuous runs
- Yes, up to 40 feet per feed
Protection & lifetime
- Location
- Damp Rated
- Warranty
- 5 years
Configurations / SKUs
| SKU | Length | Wattage | Optics | Output @ 3500–4000 K | Output per foot |
|---|---|---|---|---|---|
| CL-AR15-4FT-DF★ | 4 ft | 40 W | Diffuser | 4,400 lm | 1,100 lm/ft |
| CL-AR15-6FT-DF | 6 ft | 60 W | Diffuser | 6,600 lm | 1,100 lm/ft |
| CL-AR15-8FT-DF | 8 ft | 80 W | Diffuser | 8,800 lm | 1,100 lm/ft |
| CL-AR15-4FT-LV★ | 4 ft | 40 W | Louver | 3,400 lm | 850 lm/ft |
| CL-AR15-6FT-LV | 6 ft | 60 W | Louver | 5,100 lm | 850 lm/ft |
| CL-AR15-8FT-LV | 8 ft | 80 W | Louver | 6,800 lm | 850 lm/ft |
