Luminaria LED vial CL ST9 con carcasa aluminio, montaje pole mount y ±15° tilt adjustment

Your configuration

Updates with your selection in “Configure & add to quote”

Roadway

High-performance roadway lighting with maximum efficiency

Name: CL ST9
Brand: Carden Lighting

CL ST9

Power50 – 240 W

Efficacy145 lm/W

Flux7,250 – 34,800 lm

CCT3000 – 6000 K

CRIRa 70 / 80

CL ST9 revolutionizes street lighting with cutting-edge LED technology. Delivers 7,250 to 34,800 lumens across 7 power ratings, IP66 rated, and flexible mounting. Reduces energy consumption by up to 70% versus traditional technology.

Certifications

CERoHSCBIP66

Does your project require another standard? We build to your specification.

Request a quote Request IES file· 3 files

5-year warrantyOperating since 1989Response in under 24 h

Photometric data (IES/LDT) and datasheet available on request — we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm — free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Configure & add to quote

Power

Light color

Mounting

Accessories

Other / extra requirement

Quantity

Where it's used

Alumbrado público de avenidas, ejes viales y vías vehiculares urbanas con distribución óptica tipo T2/T3 para uniformidad sobre el arroyo vehicularCalles residenciales y vialidades peatonales donde se requiere confort visual y bajo deslumbramientoRutas de tráfico y accesos principales a fraccionamientos, parques industriales y equipamiento urbanoEstacionamientos abiertos de centros comerciales, hospitales y edificios públicosCiclovías y andadores peatonales integrados a la infraestructura municipalModernización de alumbrado municipal existente (montaje en punta de poste de 50/60 mm con ajuste de inclinación ±15°)

Featured benefits

Reduce consumo de energía hasta 70% vs iluminación HID convencional
Distribuye 7 opciones de potencia (50W-240W) para cada necesidad de infraestructura
Mantiene IP66 resistencia en ambientes extremos y mojados
Ajusta ángulo de inclinación ±15° para cobertura personalizada
Carcasa aluminio ADC12 garantiza durabilidad en vías públicas

Accessories

Tap to add them to your configuration →

Specifications

Electrical specifications

Input voltage: AC 100–265
Frequency (Hz): 50/60Hz
Power factor: ≥ 0.95
THD (%): < 15 %
Surge protection (kV): 20
Driver type: External
Driver brand: Driver de marca premium certificada (detalle en registro interno)
Dimming options: 1–10 V, Timer Dimming, DALI

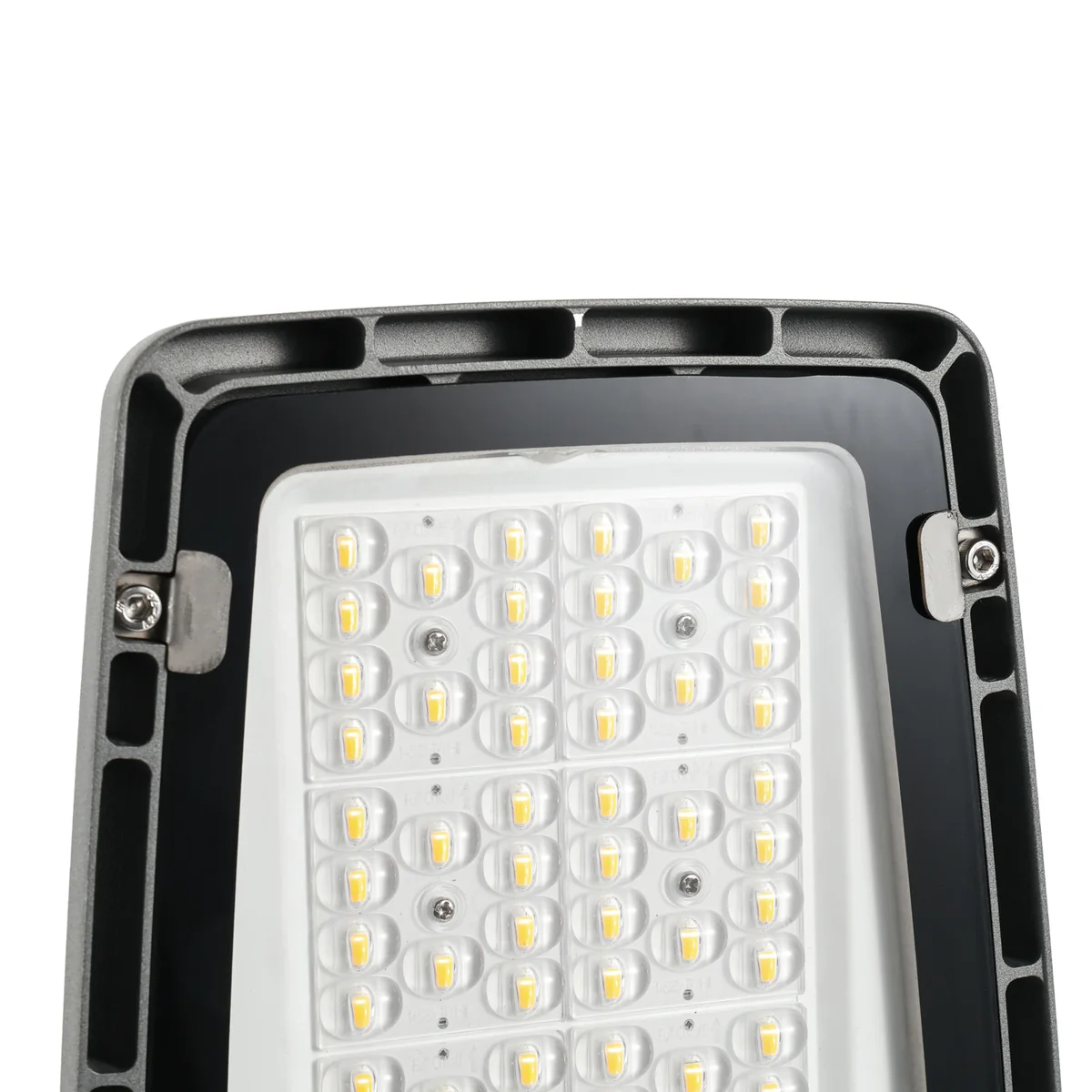

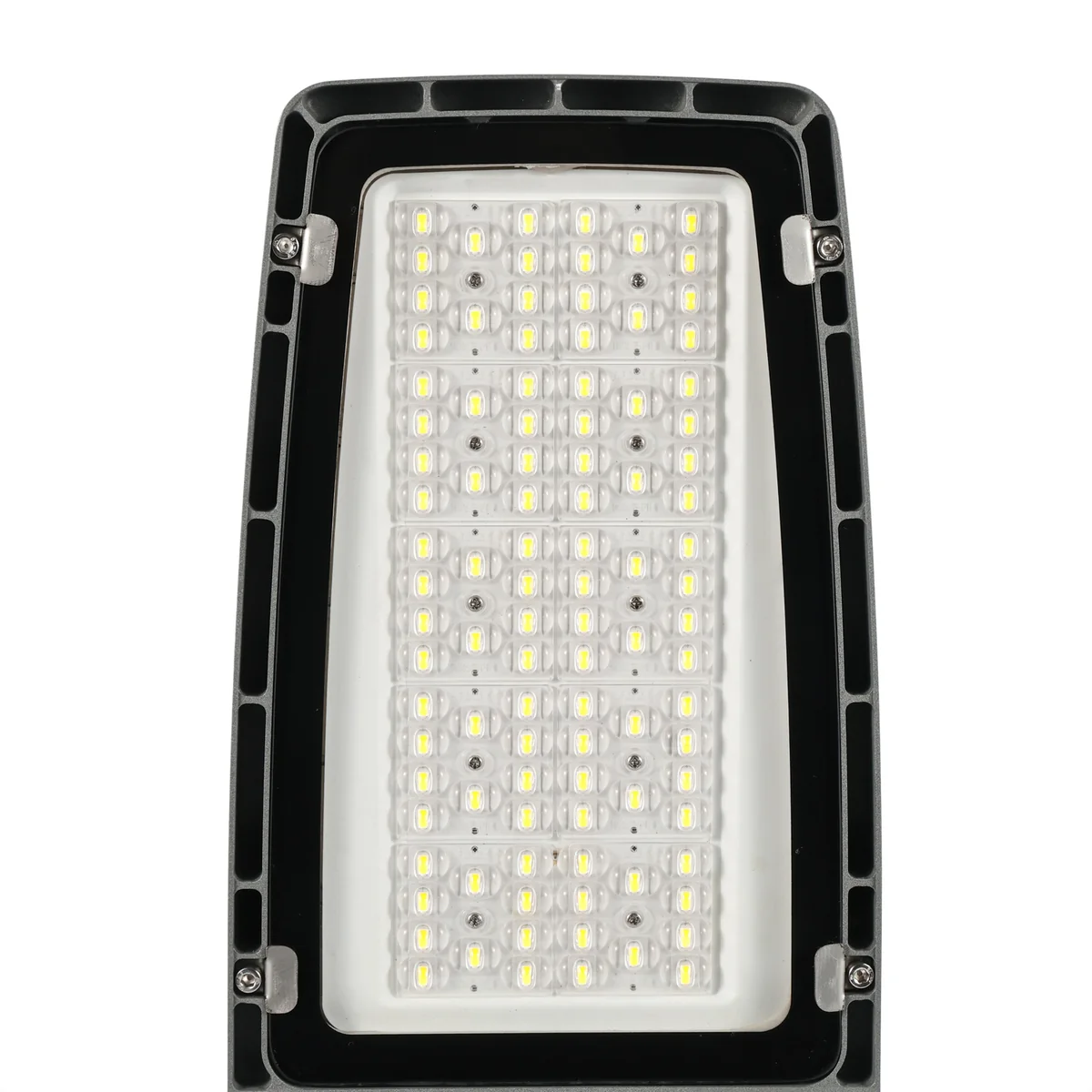

LED type: LED de alto rendimiento (SMD 2835 / 5050)

Photometric specifications

Available wattages: 50–240 W
Lumens (per wattage): 7,250–34,800 lm
Lumens: 7,000–36,000 lm
Efficacy (lm/W): 145 lm/W
CRI / Ra: Ra 70 / 80
Available CCT (K): 3000–6000 K

Physical, materials & mounting

Housing material: ADC12 high-pressure Die-cast Aluminum
Lens material: UV-resistant Polycarbonate (Lens version) / High-strength Tempered glass (Glass version)
Finish / color: RAL9007 (default, available on request)
RAL color code: RAL9007

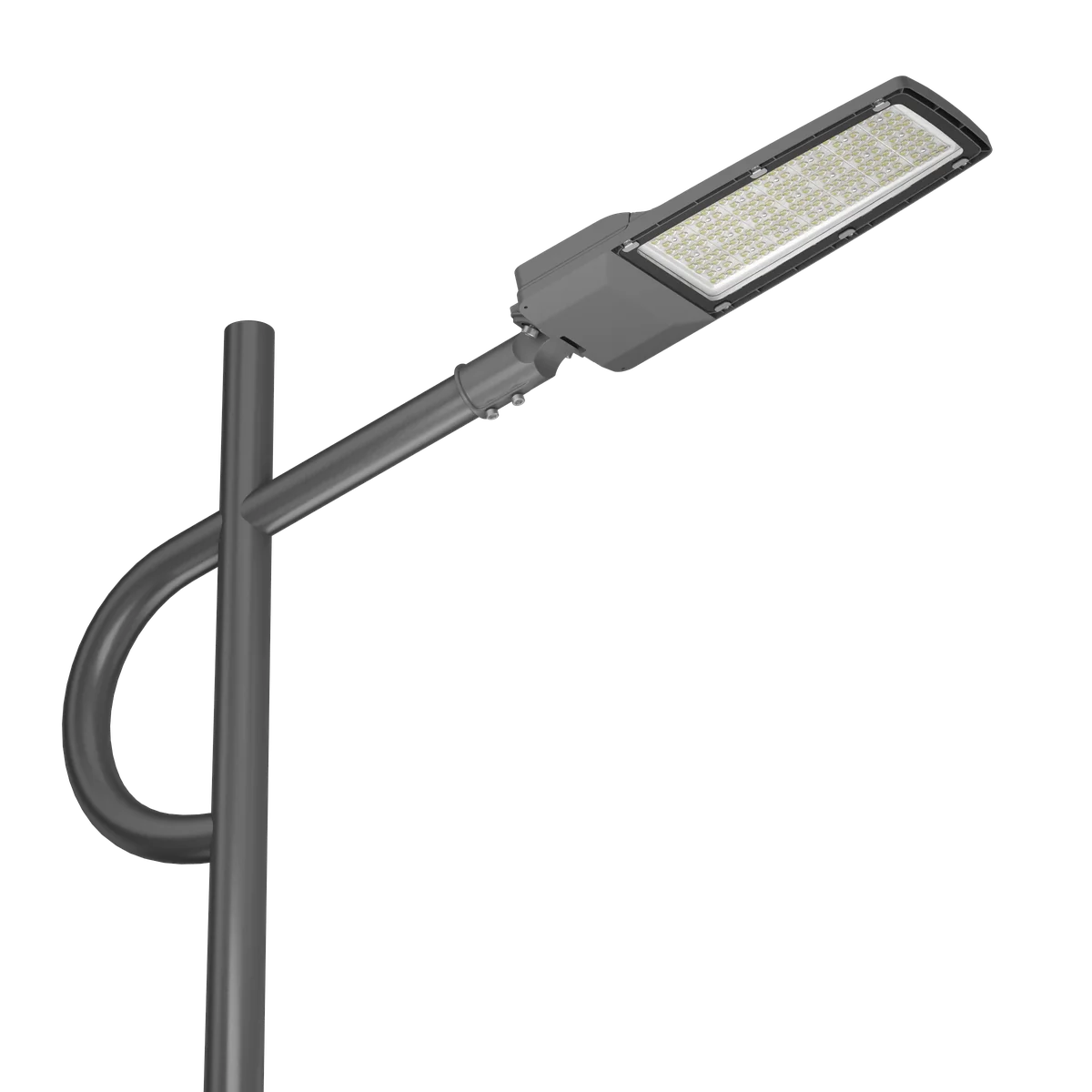

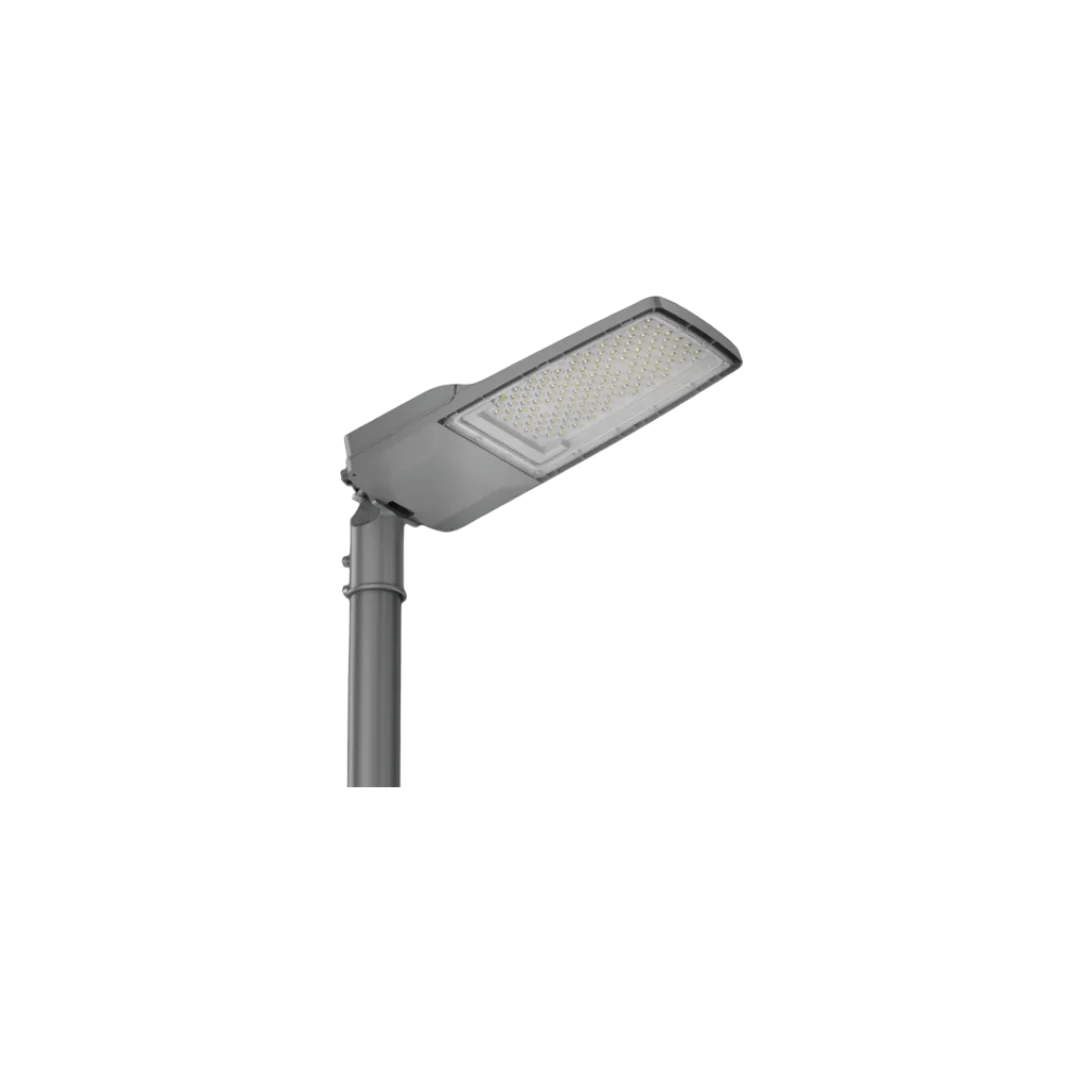

Mounting options: Side entry pole mount, Vertical pole mount, ±15° tilt adjustment, 50mm / 60mm holder

Protection & lifetime

IP rating: IP66
Operating temperature: −20 a 50 °C
Humidity (%): 10% ~ 90% RH
Lifetime: 50,000 h · L70
Lifetime metric: 70 h · L70
Lifetime Ta (°C): 25 h
Warranty: 5 years

Configurations / SKUs

SKU	Wattage	Lumens	Efficacy	Dimensions (mm)	Weight
CL-ST9-50W-145-T2S	50 W	7,250 lm	145 lm/W	492x180x92	2.09kg
CL-ST9-80W-145-T2S	80 W	11,600 lm	145 lm/W	492x180x92	2.09kg
CL-ST9-100W-145-T2S	100 W	14,500 lm	145 lm/W	614x207x92	2.79kg
CL-ST9-120W-145-T2S	120 W	17,400 lm	145 lm/W	614x207x92	2.79kg
CL-ST9-150W-145-T2S	150 W	21,750 lm	145 lm/W	627x243x92	3.2kg
CL-ST9-200W-145-T2S	200 W	29,000 lm	145 lm/W	729x243x92	3.59kg
CL-ST9-240W-145-T2S	240 W	34,800 lm	145 lm/W	729x243x92	3.59kg
