Your configuration
Updates with your selection in “Configure & add to quote”
- Power
- 4 W
- CCT
- 2700 K
- Beam angle
- 120°
- Diameter
- 3.5 m
- Illuminance
- 191 lux
Bollard on a park pathØ and illuminance calculated at 1 m
Solar

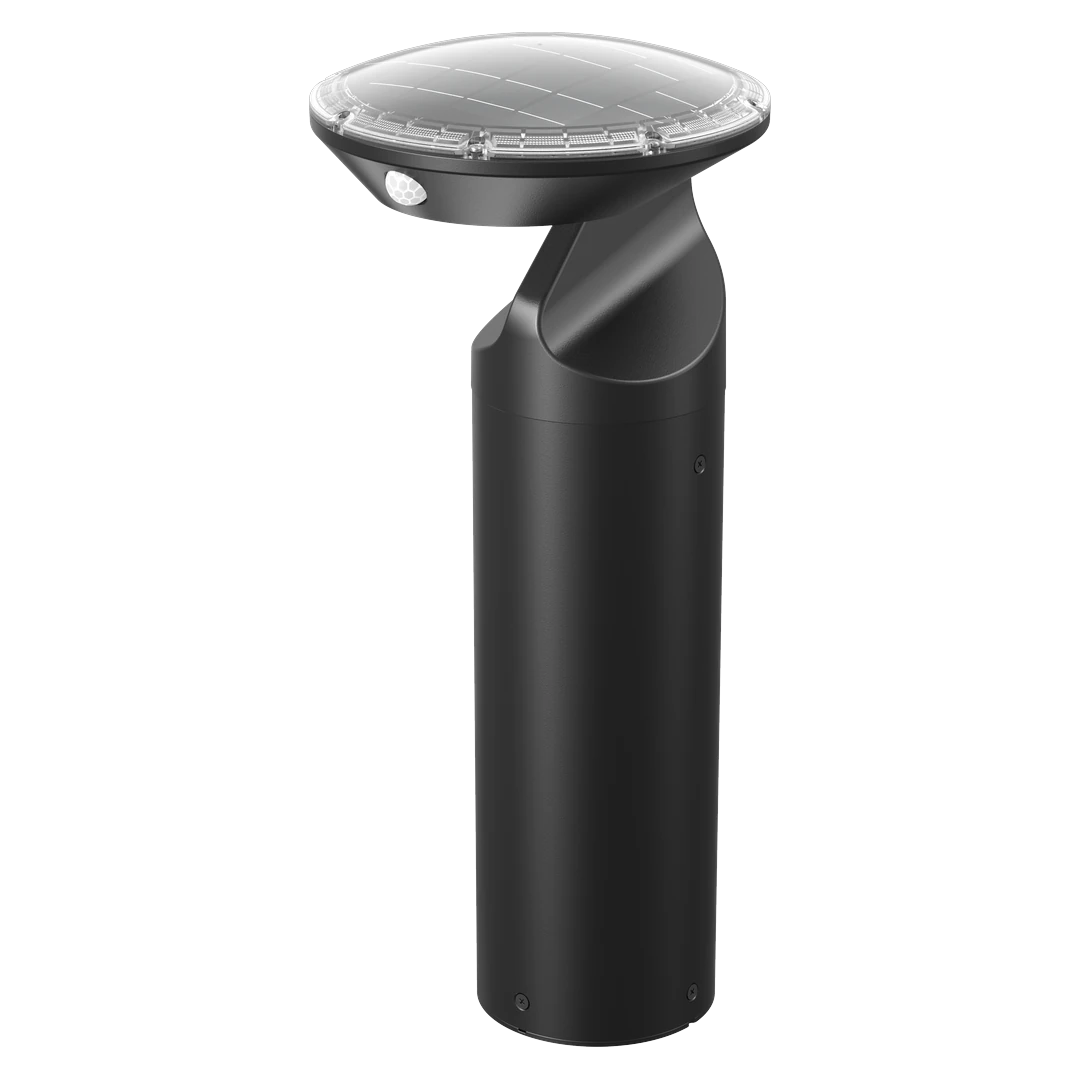

CL SBL 9
Power4 W
Efficacy170 lm/W
Flux680 lm ±10 % a Ra70
CCT3000 – 5000 K
CRIRa 70 / 80
Certifications
CERoHS
Does your project require another standard? We build to your specification.
5-year warrantyResponse in under 24 h
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
- Power
- 4 W
- CCT
- 2700 K
- Beam angle
- 120°
- Diameter
- 3.5 m
- Illuminance
- 191 lux
Bollard on a park pathØ and illuminance calculated at 1 m
Configure & add to quote
Power
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
Specifications
Photometric
- Rated wattage
- 4 W
- Output
- 680 lm ±10 % a Ra70
- Efficacy
- 170 lm/W
- CCT
- 3000–5000 K
- CRI
- Ra 70 / 80
- SDCM
- <5
- Optics
- Symmetric Type V, 155° × 155°, 70° tilt: unique in the series
- Source
- LED 2835
- Lifetime
- 80,000 h · L90
Physical
- Body
- Powder-coated aluminum alloy
- Optics
- Polycarbonate
- Color
- Black RAL 9017
- Protection
- IP66 / IK10 (fixture body)
- Corrosion
- C3 (ISO 9223:2012)
- Dimensions
- Ø230 × 545 × Ø133 mm · Ø230 × 1045 × Ø133 mm
- Net weight
- 3.5 kg (0.5 m) · 5.2 kg (1 m)
- Operating temperature
- 0 to +45 °C
Configurations / SKUs
| SKU | Height | Sensor | Autonomy | Weight |
|---|---|---|---|---|
| CL-SBL9-4W-055 | 545 mm | — | 2 nights | 3.5 kg |
| CL-SBL9-4W-105 | 1045 mm | — | 2 nights | 5.2 kg |
| CL-SBL9-4W-055-PIR★ | 545 mm | PIR | 3 nights | 3.5 kg |
| CL-SBL9-4W-105-PIR★ | 1045 mm | PIR | 3 nights | 5.2 kg |
Swipe the table to see all columns →
