CL RTT 9

Name: CL RTT 9
Brand: Carden Lighting
SKU: CL-RTT9-4FT-40

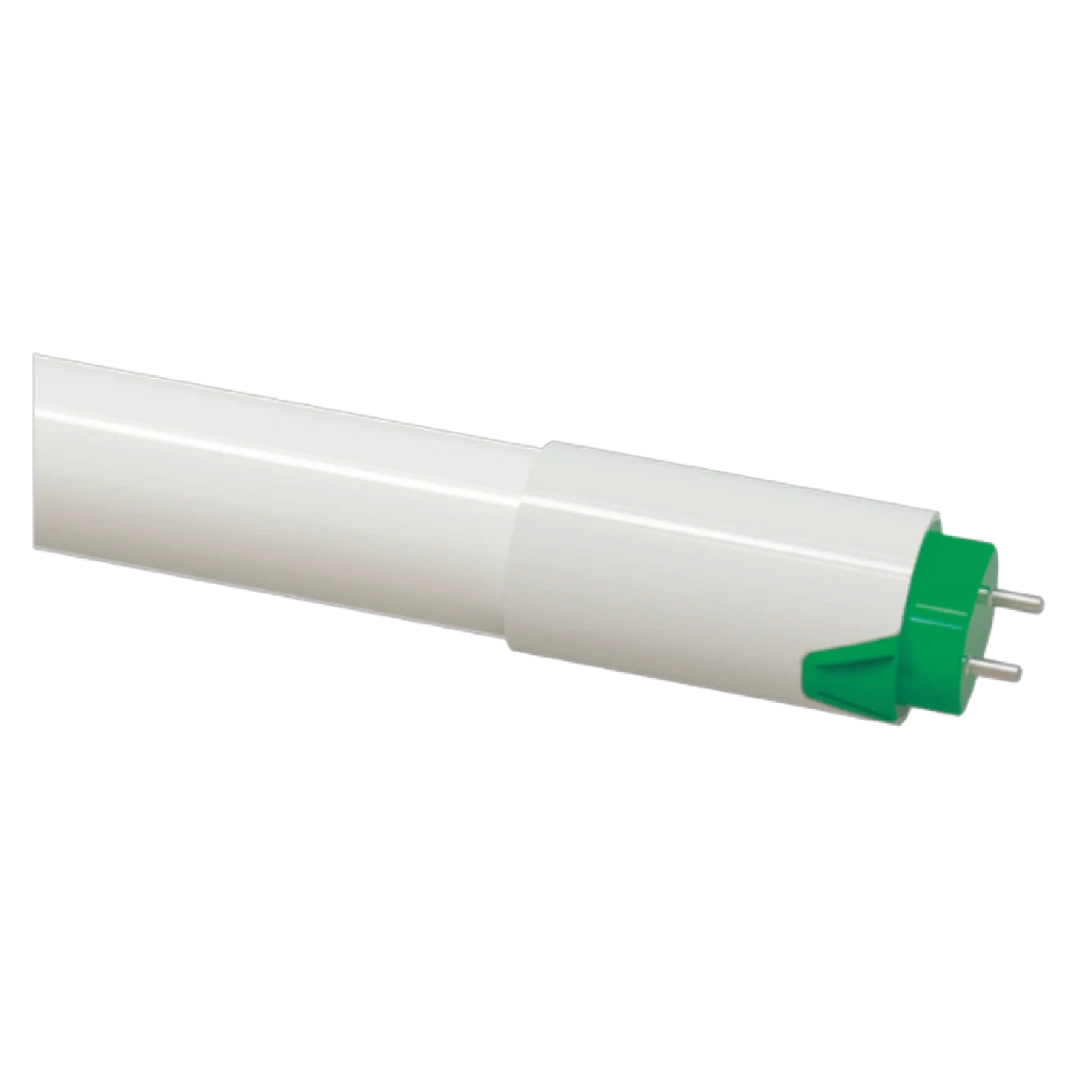

T8 LED Retrofit Tube · G13 · 2 ft & 4 ft · 6–18 W · 3000–6000 K

Power6 – 18 W

Flux1,200 – 3,600 lm

CCT3000 – 6000 K

CL RTT 9 is Carden Lighting's T8 LED tube for replacing fluorescent lamps in fixtures that are already installed. It fits the existing G13 lampholder, so the ceiling fixture stays in place and the upgrade happens on site, without swapping equipment or reworking the installation. Available in 2 ft and 4 ft, 6–18 W, 1,200–3,600 lm, 3000–6000 K and a 170° spread. Carden manufactures: wattage and color temperature are set per project within those ranges.

Does your project require another standard? We build to your specification.

Request a quote Request data sheet Request IES files

5-year warrantyResponse in under 24 h

Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →

Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.

Your configuration

Updates with your selection in “Configure & add to quote”

Power: 18 W
CCT: 2700 K
Beam angle: 120°
Diameter: 20.8 m
Illuminance: 24 lux

Warehouse, linear high bayØ and illuminance calculated at 6 m

Configure & add to quote

Power

Light color

We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.

Mounting

Other / extra requirement

Quantity

Where it's used

Corporate offices: direct replacement of T8 fluorescent tubes in recessed and surface fixtures already installed; the G13 lamp holder and the fixture are kept, so the work is done with no construction and with the space in operation.Schools and classrooms: technology upgrade in classrooms, labs and corridors that already have 2 and 4 ft T8 troffers; lets you standardize the color temperature per building (3000 to 6000 K, selectable when ordering).Clinics and general hospital areas: corridors, exam rooms, records and administrative areas with existing T8 fixtures; the 170° beam gives the even diffusion typical of a tube.Retail and big-box: general lighting for sales floors, store stockrooms and back rooms fitted with T8 troffers, without replacing the ceiling fixtures.Warehouses, workshops and light industrial facilities: rows of T8 tubes in shelving aisles, packing areas and workshops; the 4 ft length matches the standard pitch of linear fixtures already installed.The only T8 retrofit tube in the Carden Lighting portfolio.Family sibling: CL RTB (Retrofit Bulb, corn light with E26/E27/E39/E40 base), which handles lamp retrofits; CL RTT 9 handles linear tube retrofits.Compared with the complete linear families (CL LM, CL PL, CL TRF), this product is the way to go when the client keeps the fixture and only changes the light source.

Featured benefits

Installs in the fixture already on site; the G13 lamp holder is kept; no need to replace the equipment or work on the ceiling.
Two standard lengths (2 and 4 ft) that match the most common T8 troffers in offices, schools and stores.
Color temperature to choose from 3000 to 6000 K; the same model covers warm to cool light, so a whole building is standardized with the same fixture.
Wattage range from 6 to 18 W to match the light level to the area without changing families.
170° diffusion: wide, even coverage typical of the tubular format.
Minimal construction with the space in operation; the change is made tube by tube, without taking the area out of service.

Specifications

Electrical specifications

Wattage: 6–18 W
Lamp base: G13 bi-pin (T8 format)

Photometric specifications

Luminous flux: 1,200 – 3,600 lm
CCT: 3000–6000 K
Beam angle: 170°
Distribution: Wide 170° diffusion, typical of a T8 tube with diffuser

Physical, materials & mounting

Dimensions: 2 ft (≈600 mm) and 4 ft (≈1,200 mm) · T8 diameter = 25.4 mm (1 in) by definition of the format
Mounting: Existing G13 lamp holder; installs in the T8 fixture already on site, without replacing the equipment

Configurations / SKUs

SKU	Length	CCT	Base	Beam angle
CL-RTT9-2FT-30	2 ft (≈600 mm)	3000 K	G13	170°
CL-RTT9-2FT-40	2 ft (≈600 mm)	4000 K	G13	170°
CL-RTT9-2FT-50	2 ft (≈600 mm)	5000 K	G13	170°
CL-RTT9-2FT-60	2 ft (≈600 mm)	6000 K	G13	170°
CL-RTT9-4FT-30	4 ft (≈1,200 mm)	3000 K	G13	170°
CL-RTT9-4FT-40★	4 ft (≈1,200 mm)	4000 K	G13	170°
CL-RTT9-4FT-50	4 ft (≈1,200 mm)	5000 K	G13	170°
CL-RTT9-4FT-60	4 ft (≈1,200 mm)	6000 K	G13	170°
