Industrial
CL HBU 14
In stockTwelve light levels across three bodies

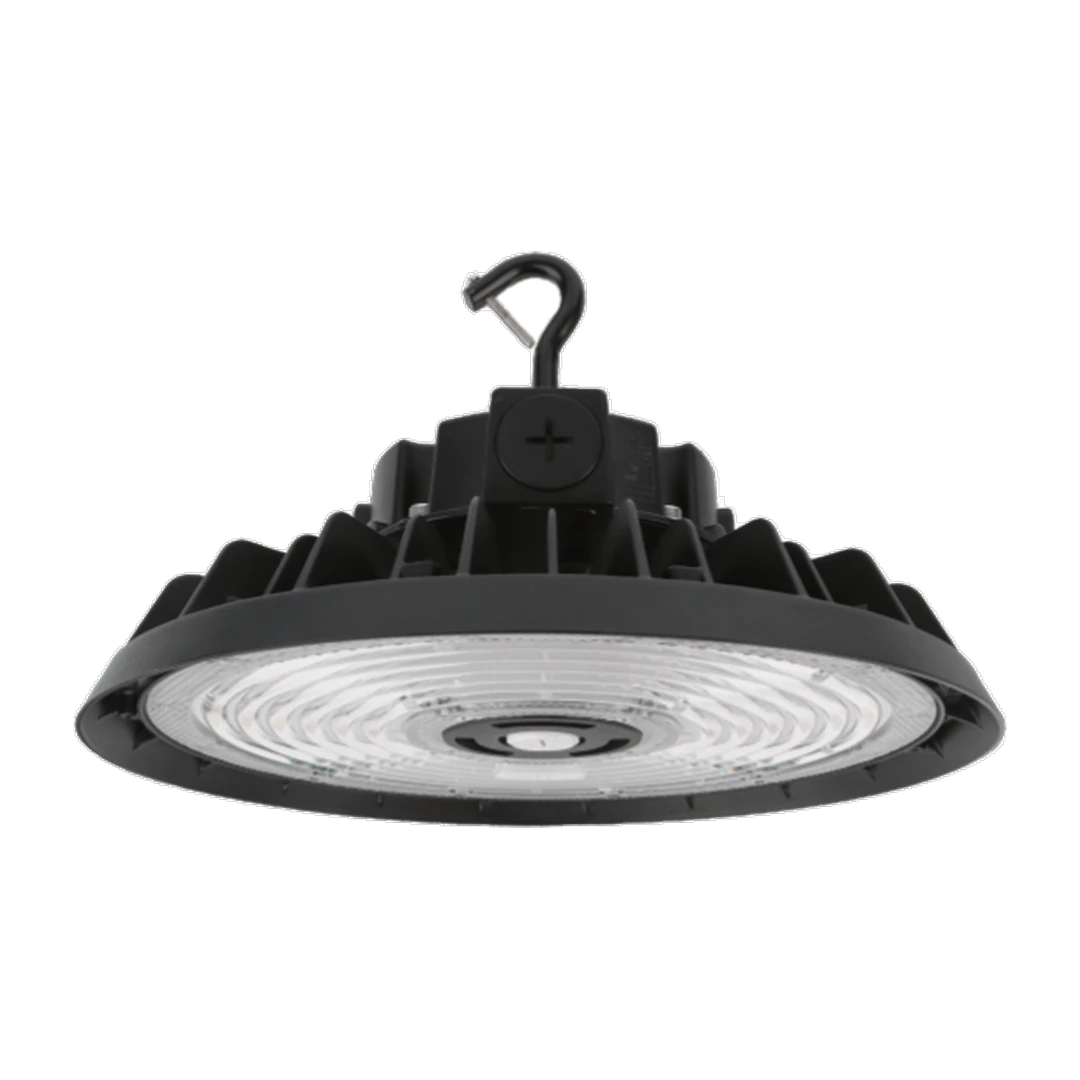

Die-cast aluminium UFO high bay with wattage and colour temperature selected
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
- Power
- 200 W
- CCT
- 2700 K
- Beam angle
- 90°
- Diameter
- 12.0 m
- Illuminance
- 453 lux
Configure & add to quote
Power
Pick the SKU; the highlighted wattage is the default.
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- Adapts on site: three wattages and two color temperatures without replacing the fixture
- Four power ladders from 80 to 320 W: mixed heights with a single family
- Up to 170 lm/W in the high-efficacy version
- Dims down to off, not just to 10 %
- Standard sensor port with 3-pin base and Zhaga compatibility
- Emergency battery available
- IP65 · IK08 · 6 kV surge protection
- Operates from −40 to 50 °C: works in cold rooms
- cULus wet and DLC 6.0 Premium, with a 5-year warranty
Specifications
Electrical specifications
- Input voltage
- 120-277 V CA · 120-347 V CA · 277-480 V CA (50/60 Hz)
- Wattage
- Three selectable steps per power ladder (see table)
- Dimming
- 0-10 V continuous, from 100 % down to off
- Surge protection
- 6 kV L/N-PE and 6 kV L-N, on all models
- Flicker
- Flicker-free
- Wiring
- 59" power cord and 12" dimming cord included
- Sensor port
- 0-10 V standard, with 3-pin twist-lock receptacle. Accepts a Zhaga base
- Control
- Optional PIR sensor or networked wireless control. Compatible with LLLC from two commercial platforms
- Emergency
- Backup battery available
Photometric specifications
- Output
- 11,950 – 48,320 lm depending on power ladder, step and CCT
- Efficacy
- 150–170 lm/W
- CRI / Ra
- Ra 80
- CCT
- 4000–5000 K
- Distribution
- Narrow · medium (standard) · wide
Physical, materials & mounting
- Format
- Round UFO, three sizes
- Construction
- Die-cast aluminum, body and heat sink in one piece
- Dimensions
- 13.0" × 13.0" × 6.5" (150WS) · 14.2" × 14.2" × 6.5" (240WS) · 16.0" × 16.0" × 7.1" (320WS)
- Weight
- 5.8 · 7.1 · 10.4 lb depending on size
- Mounting
- G hook as standard · O hook, U bracket and 3/4" NPS threaded pendant adapter optional
- Security
- Optional safety cable kit
- Finish
- Black standard · white · colors on request
- Packaging
- 1 pc per box
Protection & lifetime
- Ingress
- IP65
- Impact
- IK08
- Location
- cULus for wet locations
- Lifetime
- 102,000 h · L70
- Warranty
- 5 years
- Ambient temperature
- −40 °C to +50 °C (−40 °F to 122 °F)
Configurations / SKUs
| SKU | Selectable wattages | Output @ 4000 K | Output @ 5000 K | Efficacy |
|---|---|---|---|---|
| CL-HBU14-150WS★ | 80–150 W | 12,350 · 15,450 · 23,350 lm | 11,950 · 14,950 · 22,400 lm | 150–155 lm/W |
| CL-HBU14-200WS | 100–200 W | 15,800 · 23,650 · 31,700 lm | 15,250 · 22,900 · 30,500 lm | 153–158 lm/W |
| CL-HBU14-240WS★ | 150–240 W | 23,500 · 31,300 · 37,800 lm | 22,550 · 30,050 · 36,100 lm | 151–157 lm/W |
| CL-HBU14-320WS★ | 200–320 W | From 31,700 lm | — | 159 lm/W |
