CL HBL 10

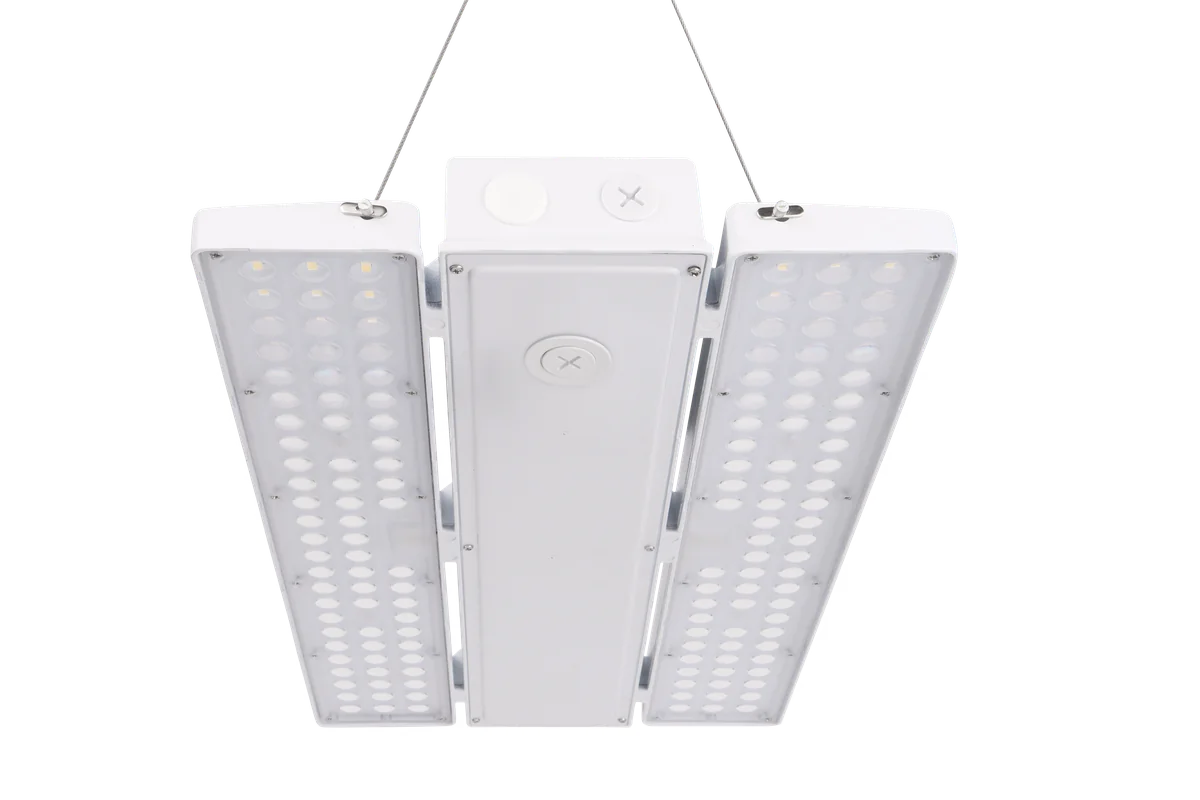

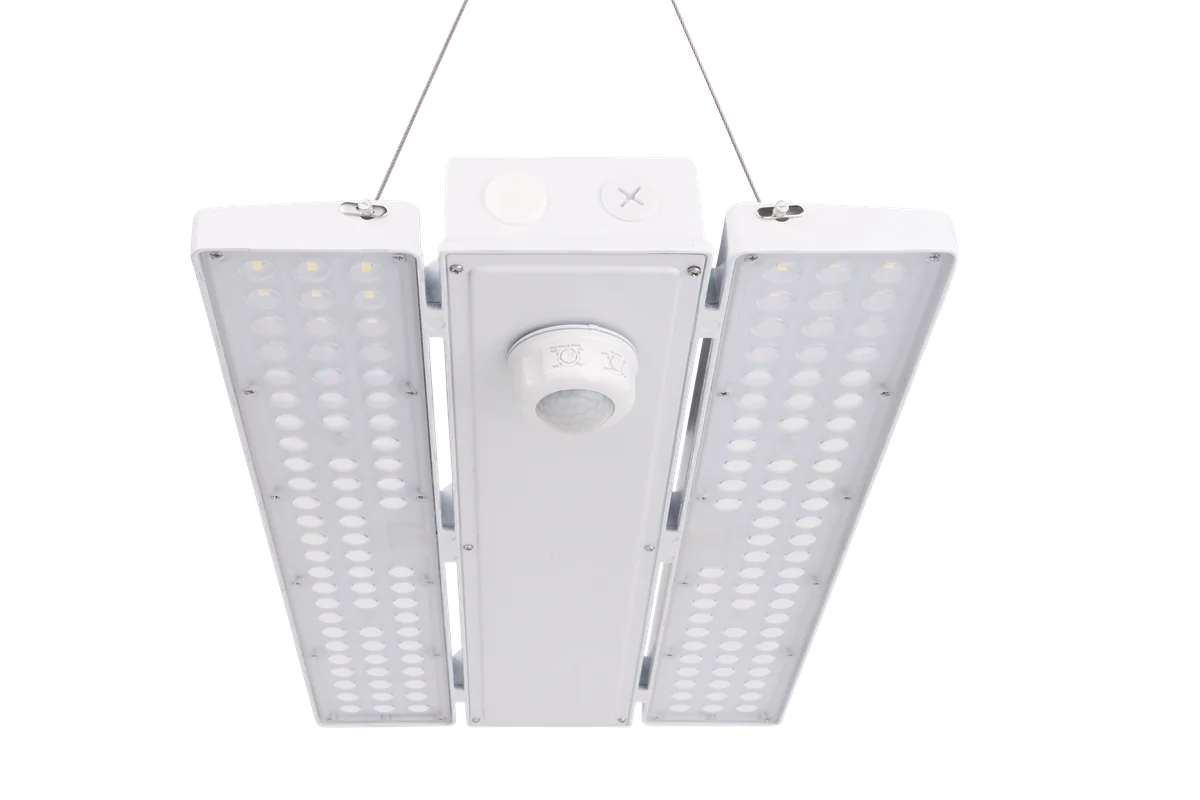

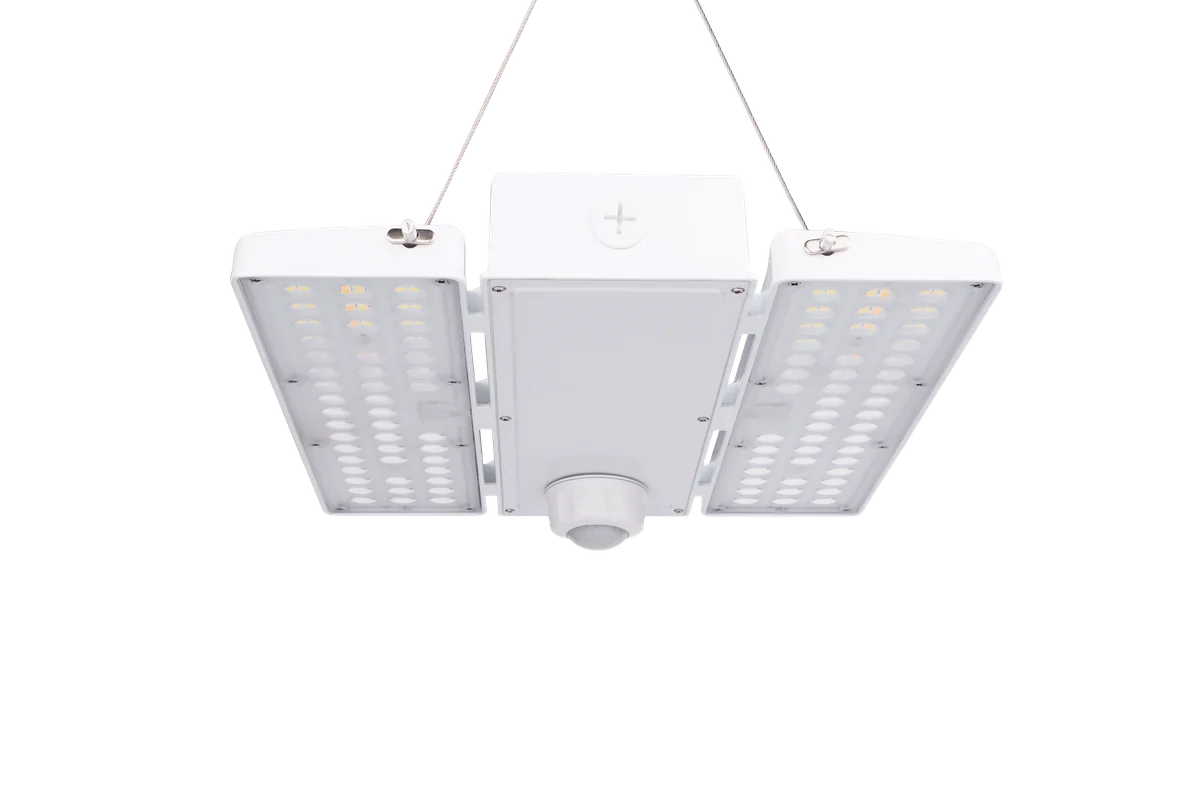

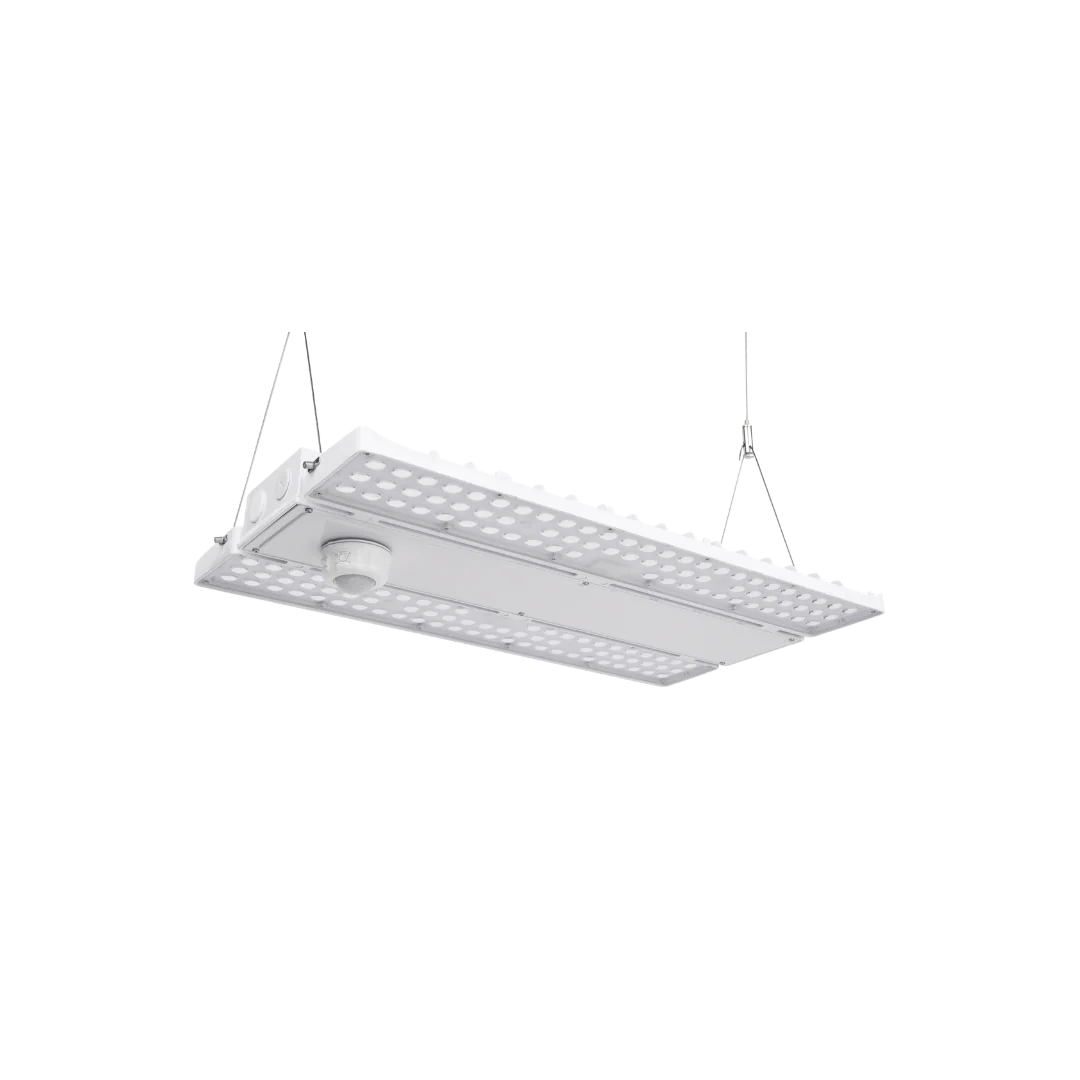

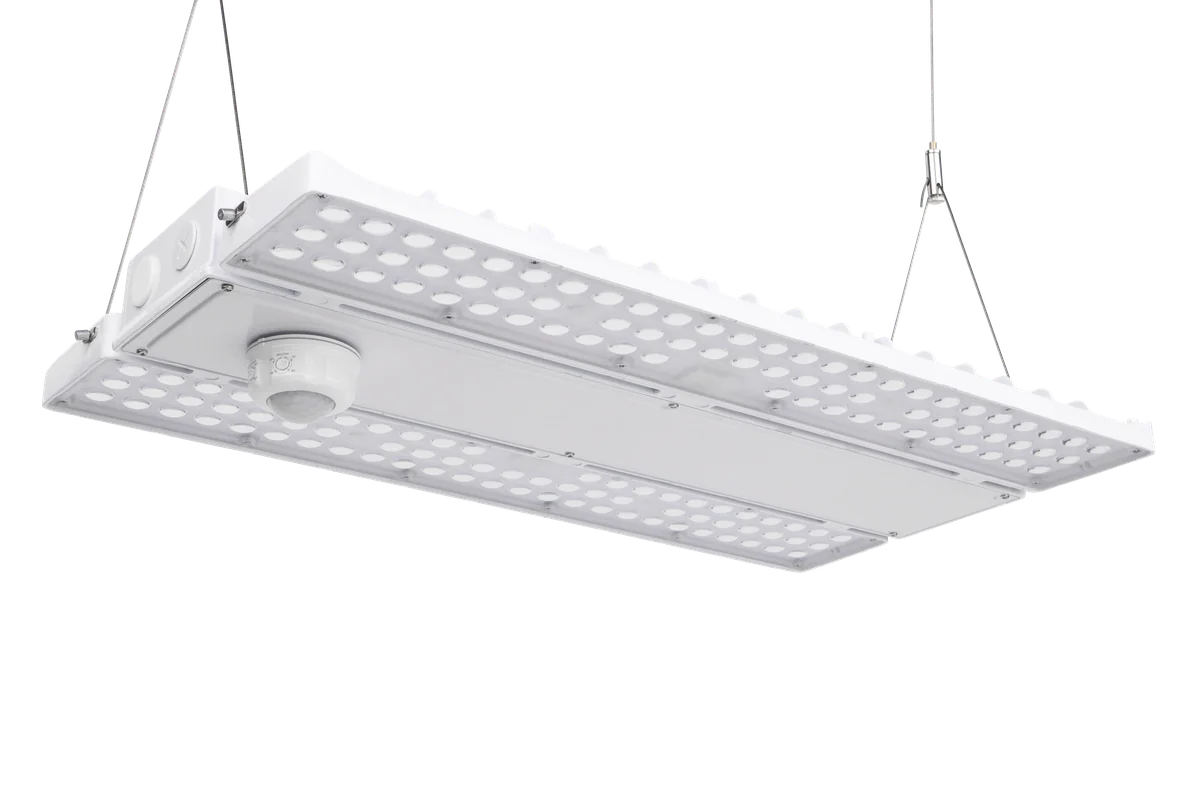

90–420 W Linear LED High Bay · Interchangeable General or Aisle Optic
CL HBL 10 is Carden Lighting's highest-output linear high bay: five platforms spanning 90 to 420 W, reaching 72,600 lm per point. Every fixture carries three power steps and two color temperatures selected on the installed unit, so when mounting height or area use changes it is recalibrated on site instead of replaced. Its distinctive feature is the interchangeable lens: the same fixture runs a general optic for open bays or an aisle optic for rack corridors. High-efficacy version at 170 lm/W, UGR < 28, 10 kV surge protection, triple voltage 120-277 V, 120-347 V and 277-480 V, 0-10 V dim-to-off, hook-and-chain, pendant or surface mounting, cULus and DLC listed, 5-year warranty.
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
Configure & add to quote
Power (field-switchable)
Pick the SKU, then mark which of the 3 is the factory default (highlighted). Field-switchable.
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Optic / beam
Mounting
Accessories
Other / extra requirement
Quantity
- Se adapta en sitio sin reemplazar equipo; potencia y temperatura de color se ajustan en la luminaria instalada cuando cambia la altura, el layout o el uso del área.
- Óptica intercambiable, general o de pasillo: la misma luminaria alumbra una nave abierta o un corredor de racks cambiando la lente, sin cambiar de familia ni de montaje.
- Hasta 72,600 lm por punto; cinco plataformas de 90 a 420 W cubren desde una bodega de techo bajo hasta una nave de gran altura.
- Versión de alta eficacia a 170 lm/W, para proyectos donde el consumo manda sobre el índice de color.
- UGR < 28; deslumbramiento controlado para áreas donde se trabaja mirando hacia arriba: andenes, racks altos, líneas de inspección.
- Listada cULus y DLC: habilita programas de incentivos y rebates de eficiencia energética en Norteamérica.
- Supresión de 10 kV; resiste los transitorios de red de una nave con maquinaria conmutando.
- Triple voltaje 120-277 V, 120-347 V y 277-480 V: la misma serie entra en tableros comerciales, canadienses e industriales.
Tap to add them to your configuration →
Specifications
Electrical specifications
- Input voltage
- 120–277 V AC (UV) · 120–347 V AC (Canadá) · 277–480 V AC (HV) · 50/60 Hz
- Surge protection
- 10 kV (L/N-PE) · 6 kV (L-N), for all voltages
- Driver type
- Integrado · 0-10V Dimmable (100 % to OFF)
- Dimming options
- 0-10 V Dimmable to off
- LED type
- LED de alta eficiencia
Photometric specifications
- Available wattages
- 90–420 W
- Lumens
- 14,410–72,600 lm
- Efficacy (lm/W)
- 150–170 lm/W
- CRI / Ra
- Ra 70 / 80
- Available CCT (K)
- 4000–5000 K
- UGR
- < 28 (DLC 5.1 Premium)
- Distribution
- General or Aisle (interchangeable lens)
Physical, materials & mounting
- Housing material
- high-pressure Die-cast Aluminum · with polyester powder coat (anti-corrosión)
- Lens material
- Policarbonato con High-angle cut-off design
- Finish
- Blanco (standard)
- Mounting options

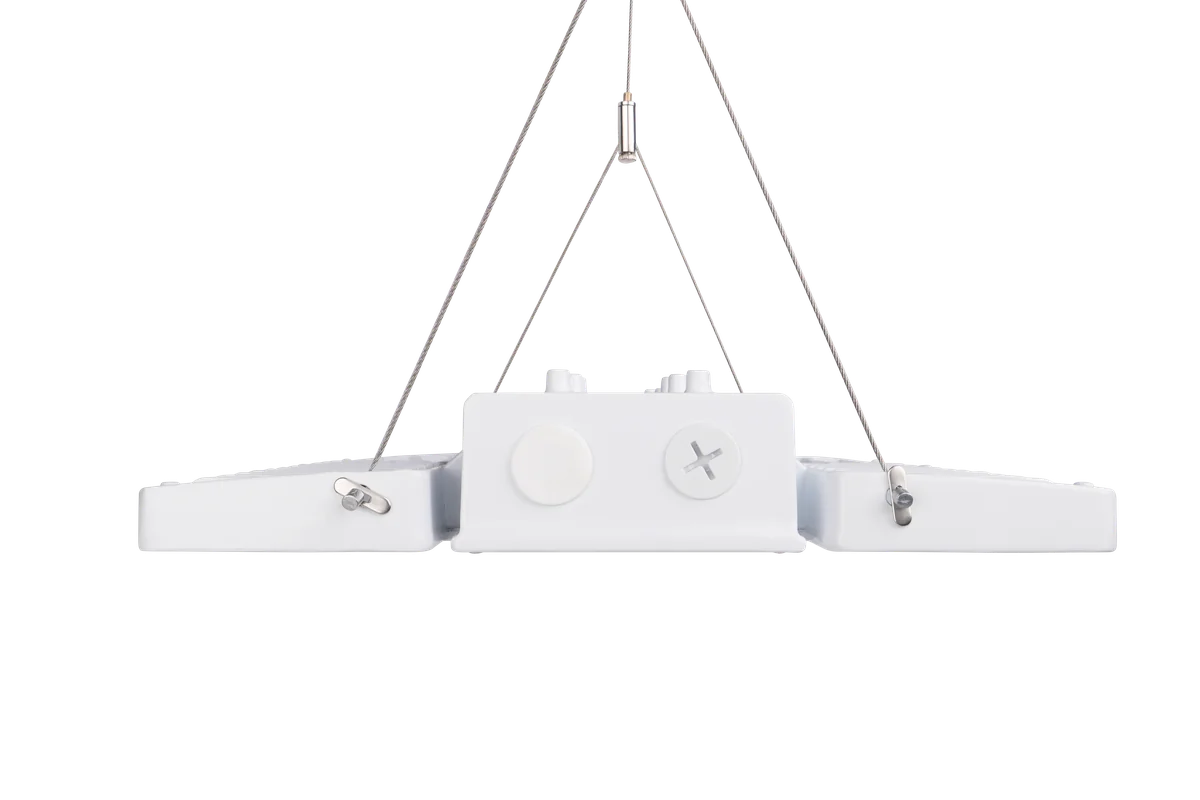

- Hook / chain · Pendant / suspendido · Surface
- Dimensiones
- Por grupo de wattage (largo nominal): 90-210 W = 1.2 ft (~356 mm) · 240-310 W = 1.7 ft (520.0 mm) · 310-420 W = 2.4 ft (712.0 mm), resto de cotas con inconsistencias de unidades en OCR, cotejar ficha PDF págs. 5-6
- Peso neto (regular)
- 2.51 kg (90-210 W) · 3.31 kg (240-310 W) · 5.21 kg (310-420 W): versiones con sensor/EM pesan más (ficha págs. 5-6)
Protection & lifetime
- Operating temperature
- −25 a 50 °C (−13 a 122 °F)
- Warranty
- 5 years
Configurations / SKUs
| SKU | Series | Wattage selectable | Lumens (4K) | Lumens (5K) | Lumens @ peak W |
|---|---|---|---|---|---|
| CL-HBL10-1-90W | (90/105/130)W | 90–130 W | 14,820–20,150 lm | 14,410–19,640 lm | — |
| CL-HBL10-2-130W★ | (115/130/155)W | 115–155 W | 18,580–23,820 lm | 18,090–23,250 lm | — |
| CL-HBL10-3-180W | (155/180/210)W | 155–210 W | 25,160–32,220 lm | 24,540–31,500 lm | — |
| CL-HBL10-4-270W | (240/270/310)W | 240–310 W | 39,840–47,400 lm | 39,010–46,500 lm | — |
| CL-HBL10-5-360W | (310/360/420)W | 310–420 W | 50,290–64,250 lm | 49,190–63,000 lm | — |
| CL-HBL10-2-155W-H | (115/130/155)W | — | — | — | 21,160–26,870 lm |
| CL-HBL10-3-210W-H | (155/180/210)W | — | — | — | 28,480–36,250 lm |
| CL-HBL10-4-310W-H | (240/270/310)W | — | — | — | 45,200–53,440 lm |
| CL-HBL10-5-420W-H | (310/360/420)W | — | — | — | 56,690–72,600 lm |
