Outdoor

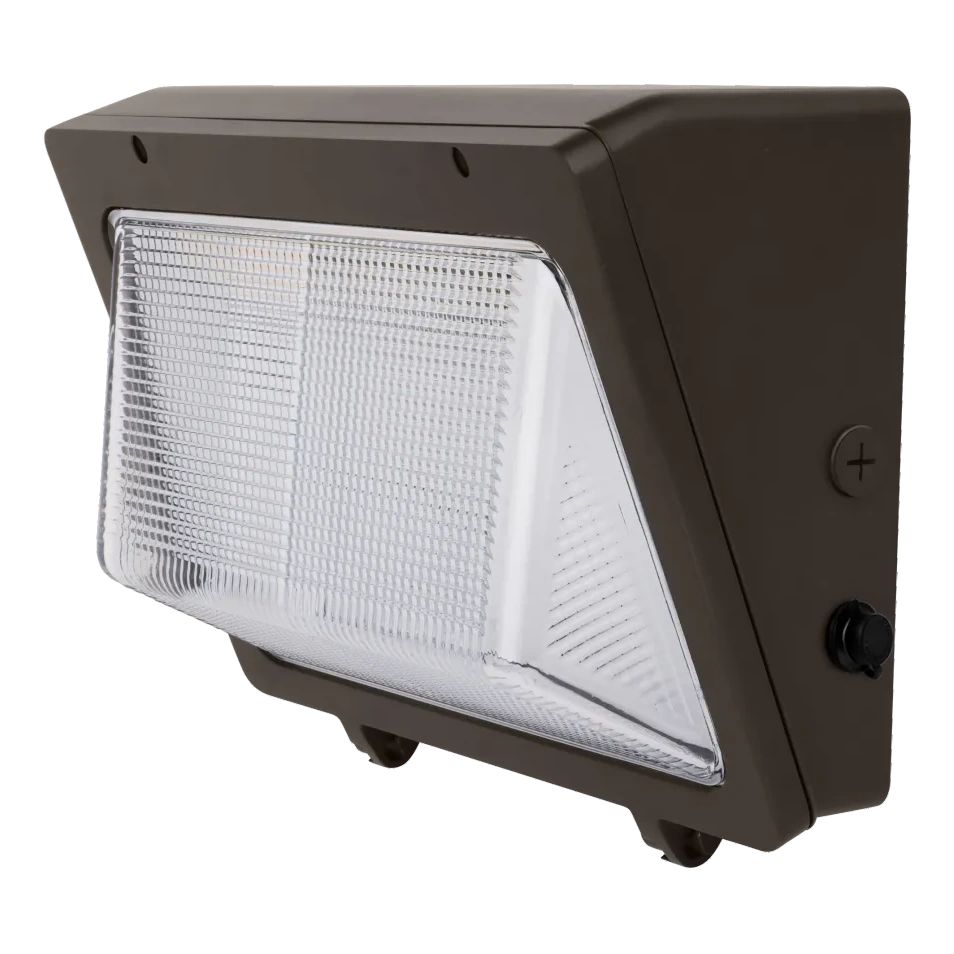

CL WP 12
In stockA wall pack you set on the wall, not in the warehouse
Semi cut-off die-cast aluminium LED wall pack that adapts on site: three
Certifications
Does your project require another standard? We build to your specification.
Photometric data (IES/LDT) and datasheet available on request: we send them in under 24 h. Or write to us by email →
Design your space with the photometric studyBetaCheck that your project meets the norm: free, in minutes.Your configuration
Updates with your selection in “Configure & add to quote”
- Power
- 76 W
- CCT
- 2700 K
- Beam angle
- 120°
- Diameter
- 17.3 m
- Illuminance
- 145 lux
Configure & add to quote
Power
Pick the SKU; the highlighted wattage is the default.
Light color
We manufacture any colour temperature. If the one your project needs isn't listed, ask for it and we'll build it.
Mounting
Other / extra requirement
Quantity
- Adjusts on the wall without replacing equipment: nine wattage combinations and three colors on the installed piece
- Covers the footprint of the HID it replaces: no patching or re-drilling needed
- Photocell included as standard, not quoted separately
- Up to 149 lm/W
- 6 kV surge protection
- 0-10 V dimming down to 0 %
- Operates from −40 to 50 °C, up to 12 m mounting height
- cULus wet and DLC, 5-year warranty
- Optional 90-minute emergency battery
Specifications
Electrical specifications
- Input voltage
- 120-277 V AC (US) · 120-347 V AC (Canada) · 50/60 Hz
- Wattage
- Three selectable steps per power ladder, with the top step as default
- Dimming
- 0-10 V continuous, 0 % minimum level · dimming leads included
- Surge protection
- L/N-PE: 6 kV · L-N: 4 kV
- Current @ 277 V
- 0.13 – 0.50 A depending on power ladder and step
- Current @ 120 V
- 0.31 – 1.16 A depending on power ladder and step
- Photocell
- Included as standard
- Emergency
- Optional: 8 W / 90 min backup battery, factory or field installed
Photometric specifications
- Output
- 4,450 – 17,200 lm depending on power ladder, step and CCT
- Efficacy
- 45–149 lm/W
- CRI / Ra
- Ra 70
- CCT
- 3000–5000 K
- Distribution
- Semi cut-off, wide beam with a tempered glass diffuser
Physical, materials & mounting
- Format
- Semi-cutoff wall pack, one size for all three power ladders
- Construction
- Powder-coated die-cast aluminum, sealed with integral gaskets against contaminant ingress
- Optics
- High-quality tempered glass diffuser
- Dimensions
- 13.17" × 10.35" × 5.73" (334.5 × 263 × 145.5 mm)
- Mounting
- Wall mount · maximum mounting height 40 ft (12.2 m)
- Finish
- Dark bronze standard · black, white, silver, green and others on request
- Packaging
- 1 pc per box · box 16.06" × 12.36" × 7.95" · 10.23 lb gross
- Container
- 871 pcs per 20GP · 2,395 pcs per 40HQ
Protection & lifetime
- Location
- cULus for wet locations
- Ambient temperature
- −40 °C to +50 °C (−40 °F to 122 °F)
- Warranty
- 5 years
Configurations / SKUs
| SKU | Selectable wattages | Output @ 4000 K | Max. efficacy | Replaces (estimated) |
|---|---|---|---|---|
| CL-WP12-63WS★ | 33–63 W | 4,800 · 7,450 · 8,650 lm | 146 lm/W | HID ≈ 150 W |
| CL-WP12-90WS★ | 45–90 W | 6,700 · 10,750 · 12,350 lm | 149 lm/W | HID ≈ 250 W |
| CL-WP12-125WS★ | 76–125 W | 11,200 · 14,850 · 17,200 lm | 148 lm/W | HID ≈ 320-400 W |
